MYIR’s OEM & ODM Services
MYIR's SMT factory is located at Shengjianli Industrial Park of Guanlan Dafu Industrial Zone in Longhua District of Shenzhen. It is certified to the ISO 9001:2015 standard to provide one-stop PCBA manufacturing services including PCB fabrication, parts sourcing, PCBA processing, testing, finished product assembly and final shipment. With advanced production equipment and management system, strict quality control process, perfect supply chain system, strong engineering support and more other advantages, MYIR helps customers improve production efficiency, shorten product delivery time and ensure production quality. MYIR serves many customers in industrial control, electric power, communications, new energy, automotive electronics, medical electronics, smart home and security industries at home and abroad. We are surely to be your reliable partner.
10+
Years in Business |
10,000+
Customers Worldwide |
99.8%
PCBA Yield |
3,000 m²
Manufacturing Base |
One-stop PCBA Manufacturing Service
 |
 |
 |
 |
DFM (Design for Manufacturing)
Checking for PCB files and BOM parts |
PCB Fabrication
for prototype or volume production according to your PCB manufacturing needs |
Parts Sourcing
according to specified BOM, supplied from high quality vendors and global distributors, strict inspection and processing |

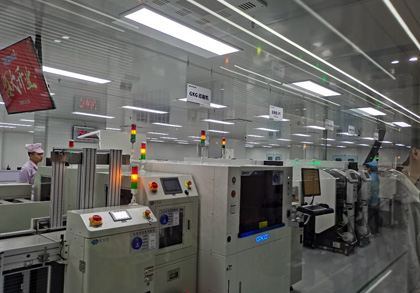

PCBA Processing
Advanced SMT lines, AOI inspection, DIP processing, quality inspection in every step of processing |
 |
 |
 |
 |

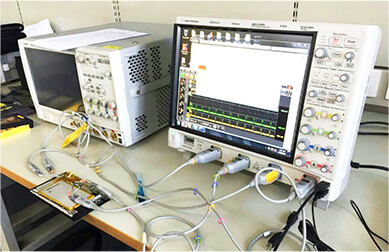

Program Burning and Testing
Make FCT test fixture according to test points, program and test steps designed by customers, and provide program burning and FCT testing services. |

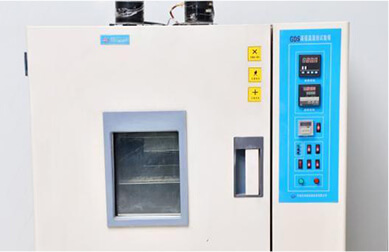

High Temperature Aging Test
Equipped with high temperature aging equipment, can provide the maximum 80℃ batch aging conditions. |
Conformal Coating
Equipped with automatic coating production line for PCBA coating and infrared curing |
Finished Product Assembly
Provide in-line assembly to deliver a finished product to you to fit your exact requirements with strictly controlled production efficiency. |
High-quality Supply Chain System Starts from the Quality of Components
With more than 10 years of industry experience, MYIR has a senior supply chain management team and professional engineer teams to help customers with BOM materials supply, component selection and replacement materials recommendation. We have also developed solid relationships with the original factories and agents to ensure the parts are original and authentic with fair prices. The components are stored in anti-static environment with constant temperature and humidity and first-in first-out control mechanism is adopted by the warehouse. MYIR has provided a high-quality supply chain system to ensure that customers can be guaranteed with short delivery time, good quality and low price.

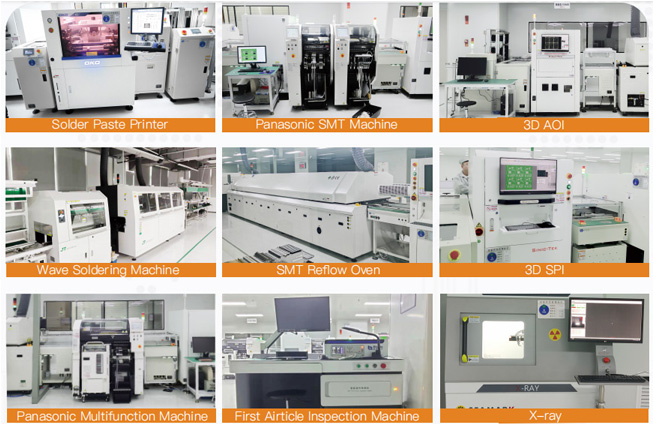

Advanced Equipment to Meet High-precision Production
 |
 |
 |
 |
Solder Paste Printer |
3D SPI |
Panasonic NPM-D3A SMT Machine |
Panasonic NPM-TT2 SMT Machine |
 |
 |
 |
 |
3D AOI |
SMT Reflow Oven |
First Article Inspection Machine |
X-ray |
 |
 |
 |
 |
Laser Engraving Machine |
Wave Soldering Machine |
Automatic PCB Router Machine |
BGA Rework Station |
Strict Quality Control, Strive for Excellence in Production Process
 |
 |
 |
 |
|
Solder Paste Storage Cabinet
|
X-ray Component Counter
|
Drying Oven
|
Constant Temperature Humidity Curing Cabinet
|
 |
 |
 |
 |
|
Temperature And Humidity Monitor
|
ESD Turnstile Gate
|
Automatic Image Measuring Instrument
|
Smart Shelf
|
Advanced Equipment, Exquisite Technology and Fast Delivery
Standard
PC-A-610H |
Component Packaging
Reel, Tape, Tube, Tray, Bulk Packaging is accepted for DIP components |
Order Quantity
>=1pc |
Placement Accuracy
±40μm/chip |
Delivery Time
The earliest deliver is in 24 hours after all materials available. |
PCB Size
50 x 50mm ~ 450 x 340mm,
PCB size less than 50 x 50 mm must use panelized PCBs. |
Assembly Type
Single or Double sides, Shielding cover if needed |
PCB Material
soft PCB, soft and hard combined PCB, Spray Tin PCB, Plating gold PCB, Immersion silver PCB, Aluminum PCB, Rubber PCBs, FR-4 PCB |
Minimum pitch of Component
BGA: 0.3mm |
Types of Soldering
lead-free reflow soldering, lead-free wave soldering and hand soldering |
Minimum Component Size
03015 (Metric) |
Steel Mesh
Laser Cut PCB Stainless Steel Mesh |
Maximum Component Size
L 150mm * W 25mm * H 30mm |
Inspection System
AOI (100%), X-Ray (random sample inspection) |
SMT Capacity
5.5 million points per day |
Other Processes
IC Programming, Function Test, Conformal Coating and Finished Products Assembly |
Steps to Customer Service
Please fill in the project basic requirement form and submit it to MYIR or send your requirement in detail directly to MYIR by mail. Starting from your basic requirement, We will evaluate it first and then communicate with you for any doubt or any of our comments and suggestions to get a final requirement agreed by both sides.
 OEM_Requirements_to_MYIR.xlsx /  OEM_Requirements_to_MYIR.pdf
 ODM_Requirements_to_MYIR.doc / ODM_Requirements_to_MYIR.pdf
OEM & ODM Service based on MYIR's CPU Modules
Based on MYIR's existing ARM CPU Modules, MYIR provides customization services and total solutions to customers to accelerate the design and launch of embedded products, and to help customers improve product quality and the competitiveness of volume production.
CPU Module |
CPU |
ARM Core |
RAM |
Flash |
On-board Ethernet PHY |
Expansion Connectors |
Software |
CPU Vendor |
| MYC-YT507H |
T507-H |
Quad Cortex-A53 |
1GB/2GB LPDDR4 |
, 8GB eMMC,
32Kbit EEPROM |
- |
1.0mm pitch 222-pin Stamp Hole Expansion Interface |
Linux
Android |
Allwinner |
| MYC-Y6ULX-V2 |
i.MX 6UL/6ULL |
Cortex-A7 |
256/512MB DDR3 |
256MB Nand Flash/
4GB eMMC |
10/100Mbps
Ethernet PHY |
140-pin Stamp Hole Expansion Interface |
Linux |
NXP |
MYC-C8MMX-V2 |
i.MX 8M Mini |
Quad
Cortex-A53 + M4 |
2GB DDR4 |
8GB eMMC, 32MB QSPI |
Gigabit
Ethernet PHY |
Two 0.8mm pitch 100-pin Board-to-Board Expansion Connectors |
Linux
Android |
NXP |
MYC-JX8MPQ |
i.MX 8M Plus |
Quad
Cortex-A53 + M7 |
3GB LPDDR4 |
8GB eMMC, 32MB QSPI |
- |
0.5mm pitch 314-pin MXM 3.0 Expansion Connector |
Linux |
NXP |
MYC-J1028X |
LS1028A |
Dual
Cortex-A72 |
2GB DDR4 |
8GB eMMC, 32Kbit EEPROM |
- |
0.5mm pitch 314-pin MXM 3.0 Expansion Connector |
Linux |
NXP |
| MYC-YG2LX |
RZ/G2L |
Dual
Cortex-A55
+ M33 |
1GB/2GB DDR4 |
8GB eMMC, 32KB EEPROM |
- |
1.0mm pitch 222-pin Stamp Hole Expansion Interface |
Linux |
RENESAS |
MYC-YA157C |
STM32MP157A |
Cortex-A7+ M4 |
512MB DDR3 |
4GB eMMC |
Gigabit Ethernet PHY |
1.0mm pitch 164-pin Stamp Hole Expansion Interface |
Linux |
ST |
| MYC-YA15XC-T |
STM32MP151A |
Cortex-A7 + M4 |
256/512MB DDR3L |
256MB Nand Flash, 4MB Data Flash, 32KB EEPROM |
- |
1.0mm pitch 148-pin Stamp Hole Expansion Interface |
Linux |
ST |
| MYC-C437X |
AM437x |
Cortex-A9 |
512MB DDR3 |
4GB eMMC,
32KB EEPROM |
Gigabit
Ethernet PHY |
Two 0.8mm pitch 100-pin board-to-board expansion connectors |
Linux |
TI |
| MYC-C335X-GW |
AM335x |
Cortex-A8 |
256/512 MB DDR3L |
256MB Nand Flash /
4GB eMMC |
- |
Two 0.8mm pitch 80-pin Board-to-Board Expansion Connectors |
Linux |
TI |
MCC-AM335X-Y |
AM335x |
Cortex-A8 |
256MB DDR3 |
256MB Nand Flash |
Gigabit
Ethernet PHY |
1.27mm pitch 146-pin stamp hole interface |
Linux |
TI |
MCC-AM335X-J |
AM335x |
Cortex-A8 |
256MB DDR3 |
256MB Nand Flash |
Gigabit
Ethernet PHY |
DDR2 SO-DIMM 200-pin Expansion Interface |
Linux |
TI |
MYC-AM335X |
AM335x |
Cortex-A8 |
256/512MB DDR3 |
256/512MB Nand Flash |
Gigabit
Ethernet PHY |
Two 2.0mm pitch 60-pin male pin headers |
Linux |
TI |
| MYC-CZU3EG/4EV/5EV-V2 |
Zynq UltraScale+
ZU3EG/4EV/5EV |
Cortex-A53 + R5 |
4GB DDR4 |
4GB eMMC,
128MB QSPI Flash |
Gigabit
Ethernet PHY |
Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed Headers |
Linux |
Xilinx |
| MYC-C7Z015 |
Zynq-7015 |
Cortex-A9 |
1GB DDR3 |
4GB eMMC,
32MB QSPI Flash |
Gigabit
Ethernet PHY |
Two 0.8mm pitch 140-pin board-to-board expansion connectors |
Linux |
Xilinx |
| MYC-C7Z010/20-V2 |
Zynq-7010/20 |
Cortex-A9 |
1GB DDR3 |
4GB eMMC,
32MB QSPI Flash |
Gigabit
Ethernet PHY |
Two 0.8mm pitch 140-pin board-to-board expansion connectors |
Linux |
Xilinx |
MYC-Y7Z010/20-V2 |
Zynq-7010/20 |
Cortex-A9 |
512MB DDR3 |
4GB eMMC,
16MB QSPI Flash |
Gigabit
Ethernet PHY |
1.27mm pitch 180-pin Stamp Hole Expansion Interface |
Linux |
Xilinx |
No. |
OEM & ODM
Services |
Description |
Optional Services |
Hardware Design |
Software Design |
Manufacture |
After-sales service |
Schematic Entry |
PCB Layout |
OS Porting |
Driver Development |
Applications
Development |
Prototype |
Mass Production |
Technical |
Maintenance |
1 |
OEM |
We can OEM for your well-designed PCBA. Please provide BOM, gerber file and your PCB and PCBA process requirements. |
|
|
|
|
|
√ |
√ |
|
√ |
2 |
CPU Module |
We design highly-integrated ARM CPU modules using different expansion connectors such as pin headers, gold finger and stamp hole. |
√ |
√ |
√ |
√ |
|
√ |
√ |
√ |
√ |
3 |
Base Board |
We design base board based on customized CPU modules or MYIR’s existing CPU modules. |
√ |
√ |
√ |
√ |
|
√ |
√ |
√ |
√ |
4 |
Single Board Computer |
We offer ARM SBC solution and custom design according to your requirements. |
√ |
√ |
√ |
√ |
|
√ |
√ |
√ |
√ |
5 |
Turn-key Design |
We provide one-stop turnkey design service to help customers with the delivery of an out-of-the-box hardware platform that is fully tested and ready to use upon delivery. |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
6 |
Software
Custom Design |
We can help with software custom design service based on MYIR’s customized or existing hardware platforms. |
|
|
√ |
√ |
√ |
|
|
√ |
|
