Shenzhen, China – January 4, 2026 – MYIR today announced the launch of its new high-performance MYC-CZU3EG-V3 System-On-Module (SOM), powered by the AMD Zynq UltraScale+ ZU3EG MPSoC. This compact, feature-rich SoM integrates a quad-core ARM Cortex-A53 application processor, dual-core ARM Cortex-R5F real-time processor, Mali-400 embedded GPU, and substantial programmable logic (FPGA) resources. Pre-loaded with PetaLinux 2024.2, it is designed to accelerate development for demanding applications in industrial automation, machine vision, edge computing, aerospace, and telecommunications.

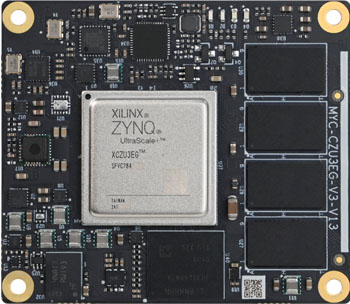

MYC-CZU3EG-V3 System-On-Module (Top-view)

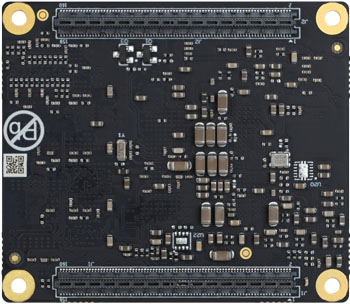

MYC-CZU3EG-V3 System-On-Module (Bottom-view)
Key Features & Specifications:
-
SoC: AMD XCZU3EG-1SFVC784 MPSoC
-
Processing Cores:
- 1.2 GHz Quad-core ARM Cortex-A53 (64-bit application processor)
- 600 MHz Dual-core ARM Cortex-R5F (real-time processor)
- High-speed interfaces: PCIe Gen2, USB 3.0, SATA 3.1, DisplayPort
- Extensive user-programmable I/O pins
-
Graphics: ARM Mali-400 MP2 GPU
-
Memory: 4GB DDR4, 8GB eMMC, 64MB QSPI Flash
-
Form Factor: Ultra-compact 60mm x 52mm
-
Integrated Peripherals: Gigabit Ethernet PHY, USB PHY, Power Management
-
Expansion: Two 160-pin high-speed connectors (0.5mm pitch) providing access to:
-
Operating Temperature: Available in Commercial (0°C to +70°C) and Industrial (-40°C to +85°C) grades
-
Sample Pricing: Starts at $319 USD (volume discounts available)
Accelerated Development with the MYD-CZU3EG-V3 Evaluation Board
MYIR offers a versatile platform MYD-CZU3EG-V3 Development Board for prototyping and evaluation purpose. It is built around the MYC-CZU3EG-V3 SOM and its carrier board fully exposes the ZU3EG MPSoC's capabilities through a comprehensive set of peripherals and interfaces, including USB 3.0, Gigabit Ethernet, DisplayPort, PCIe, SATA, CAN, HDMI, LCD, FMC, and Arduino-compatible headers. An optional 7-inch capacitive touch LCD module is also supported. The board serves as an ideal reference design for engineers developing solutions based on the AMD Zynq UltraScale+ platform.
MYD-CZU3EG-V3 Development Board Interface Diagram
MYD-CZU3EG-V3 Development Board (delivered with installed active heatsink on MYC-CZU3EG-V3 SOM by default)
Samples of the MYC-CZU3EG-V3 SoM and MYD-CZU3EG-V3 Development Board are available now. For detailed technical specifications, and purchasing information, please visit the product page on MYIR's new website:
https://en.myir.cn/ZU3EG4EV5EV/164.html
|
