MYD-LT536 Development Board

MYIR is a thrid party partner of Allwiinner, welcome to use MYIR's Allwinner series products!
We also offer custom design services, welcome your inquiry!

https://www.myirtech.com/allwinnerseries.asp

The MYD-LT536 development board is an advanced evaluation platform designed for the AllWinner T536 processor. This processor features a Cortex-A55 core running at up to 1.6GHz, a co-processor E907 RISC-V at 600 MHz, and is equipped with a 2 TOPs NPU, 2D graphics, and a 4K video codec. These features enhance the board's flexibility and convenience in connecting peripheral devices, making it suitable for applications in power equipment, industrial control, human-machine interaction, smart robotics, education, and other fields.

The MYD-LT536 development board is built around the MYC-LT536 System-on-Module (SOM) and effectively leverages the numerous features of the AllWinner T536 processor through its 381-pin LGA expansion interface. The board is powered by a 12V/2A DC input and is equipped with two USB 2.0 ports, a USB 2.0 Type-C debug port, dual Gigabit Ethernet ports, a 10/100Mbps USB-to-Ethernet interface, and a local bus. It also integrates a WiFi/Bluetooth module, a Micro SD card slot, and an NVMe PCIe M.2 2280 SSD Interface. The development board offers an LVDS display interface, along with audio capabilities. Additionally, it provides extensive expansion signals via an RPI interface (GPIO/I2C/UART/SPI/CAN) and a MiFAN interface (GPIO/I2C/UART/SPI/USB/PWM), enabling users to customize and enhance their overall development experience.

It is ready to run Linux 5.10 operating system, delivering reliable and high-performance operation across a wide range of applications. MYIR provides a comprehensive suite of software resources, including the kernel and driver source code, as well as detailed documentation and development tools. This extensive support empowers developers to take full advantage of the MYD-LT536, fostering innovation and improving productivity.

MYD-LT536 Development Board (Top- view)

MYD-LT536 Development Board (Bottom-view)

MYIR offers the MYD-LT536-GK Development Kit, which includes the MYD-LT536 development board and the MY-ICEB001 expansion board. The expansion board extends the capabilities by adding three USB2.0 ports, one RS232 port, two RS485 ports, two CAN interfaces, and one Mini-PCIe slot for a USB-based 4G LTE Module with a SIM card holder. Additionally, the kit comes with necessary accessories such as a quick start guide, a USB Type-C cable, a 12V/2A power adapter, a WiFi/Bluetooth PCB antenna, and four phoenix connectors. MYIR also provides the MY-LVDS070C 7-inch LCD module as an optional add-on. These enhanced features significantly extend the board's capabilities, enabling users to develop applications flexibly according to their project requirements.

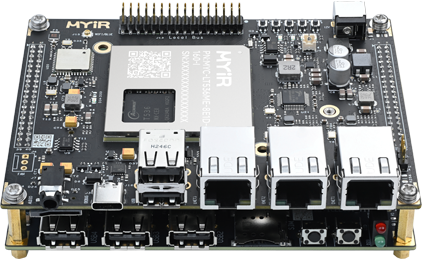

MYD-LT536 Development Board Integrates with the MY-ICEB001 Expansion Board

MY-ICEB001 Expansion Board

Features

Mechanical Parameters

• Dimensions: 90mm x 120mm (base board), 45mm x 43mm (SOM)
• PCB Layers: 6-layer design (base board), 12-layer design (SOM)
• Power supply: 5V/3A (SOM),
  12V/2A (MYD-LT536 base board or MY-ICEB001 Expansion Board)


  Please note that the two 12V/2A power supply ports should not be connected to power simultaneously.

• Working temperature: -40~85 Celsius (industrial grade)
  (WiFi/BT Module: -30~85 Celsius)



The MYD-LT536 Controller Board (MYC-LT536 System-On-Module)

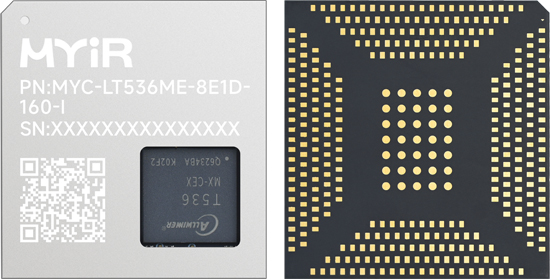

MYC-LT536 Top-view and Bottom-view

Processor

• Allwinner T536 processor (T536MX-CEX/T536MX-CEN2)
  - Quad-core ARM Cortex-A55@1.6GHz
  - E907 RISC-V@600MHz
  - Graphic 2D
  - VPU 4K HD Video Codec
  - Up to 2 Tops NPU (for T536MX-CEN2 only)

Memory

• 1GB/2GB/4GB LPDDR4

• 8GB/16GB/32GB eMMC

• 32Kbit EEPROM

Peripherals and Signals Routed to Pins

• Power Management IC

• 381-pin LGA Expansion Interfaces
  - 2x RGMII
  - 1x PCIe 2.0 (reused with USB 3.1 DRD)
  - 1x USB 2.0 DRD
  - 1x USB 2.0 Host
  - 1x SD V3.0, 4bits
  - 1x SDIO V3.0, 4bits
  - 8/16-bit width Localbus
  - 17x UART
  - 6x SPI
  - 9x I2C
  - 4x CAN FD
  - 1x LINEOUT
  - 4x I2S/PCM
  - 1x SPDIF TX, 1x SPDIF RX
  - 1x Parallel DSI, supports RGB/BT.656/i8080, 1080p@60fps
  - 1x LVDS
  - 1x MIPI DSI
  - 1x Parallel CSI
  - 1x MIPI CSI
  - 1x ISP, 8M@30fps offline mode, 5M@30fps online mode
  - 1x 26-ch GPADC,12-bit, 1MHz
  - 34x PWM

The MYD-LT536 Development Board Base Board

• 1x Power Jack
• 1x USB Debug UART (Type-C)

• 2x USB 2.0 Host (Type-A)
• 1x USB 2.0 DRD (via 40-pin MiFAN Interface)
• 2x 10/100/1000 Mbps Ethernet interface
• 1x 10/100Mbps Ethernet (RJ45, USB-to-Ethernet interface)
• 2x CAN
• 1x Localbus (8/16-bit width, data/address multiplexed, 1 chip select)
• 1x Micro SD card slot
• 1x NVMe PCIe M.2 2280 SSD socket
• 1x FAN socket
• WiFi/Bluetooth Module (complies with IEEE 802.11 a/b/g/n/ac standard and supports Bluetooth V5.2)
• 1x LVDS (40-pin FPC connector, 1366* 768@60fps, single-link)
  Supports MYIR’s MY-LVDS070C LCD Module with Capacitive Touch Screen through the LCD interface
• 1x Audio Line Out interface

• 1x 2.54mm 2 x 20-pin male expansion header (RPI interface, GPIO/I2C/UART/SPI/CAN)
• 1x 2.54mm 2*20-pin male expansion header (MI Fans PI interface, GPIO/I2C/UART/SPI/USB/PWM)

• 5x Buttons (FEL, RST, PWR, USRK1, USRK2)
• 4x LEDs (PWR, RUN, USRL1, USRL2)
• 1x RTC Battery Interface

The MY-ICEB001 Expansion Board

• 1x Power Jack
• 2x Buttons (RESET, USER)
• 2x LEDs (RUN, USER)
• 1x RS232
• 2x RS485
• 2x CAN
• 3x USB 2.0 (Type-A)
• 1x Mini-PCIe Slot for USB-based 4G LTE Module
• 1x SIM card slot
• 1x Fan socket
• 1x RPI interface (2.54mm pitch 40-pin male header)
• 1x MI FANs PI interface (2.54mm pitch 40-pin male header)

OS Support

• Linux 5.10
