MYD-CZU3EG-V3 Development Board

Please visit our new website at: https://en.myir.cn/ZU3EG4EV5EV/164.html

The MYD-CZU3EG-V3 development board consists of the MYC-CZU3EG-V3 System-On-Module and a specially designed base board to provide a complete and versatile platform for evaluating and prototyping based on AMD Zynq UltraScale+ MPSoC devices. The MYC-CZU3EG-V3 System On Module is an Arm SOM with integrated XCZU3EG-1SFVC784 MPSoC, 4GB DDR4, 8GB eMMC, and 64MB QSPI Flash, Ethernet PHY, USB PHY and Power Module. It is mounted on the MYD-CZU3EG-V3 base board through two 0.5mm pitch 160-pin Razor Beam High-Speed Sockets.

The MYD-CZU3EG-V3 Zynq UltraScale+ ZU3EG MPSoC development board has extended a rich peripheral set and interfaces on the base board through connectors and headers including USB 3.0, Gigabit Ethernet, CAN, TF, DisplayPort (DP), PCIe interface, SATA interface, JTAG, HDMI, LCD interface, ARDUINO User Interface, PMoD, FMC, and four SFP+ interfaces (for EV MPSoCs only).

The MYD-CZU3EG-V3 is capable of running PetaLinux 2024.2 and supporting Vitis development. It comes with necessary cable accessories as well as detailed documentations and software package. Typical applications are the Internet, cloud computing, Data center, Machine Vision, Military facilities, Flight navigation and other embedded applications.

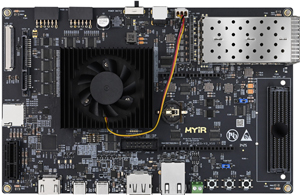

MYD-CZU3EG-V3 Development Board (delivered with active heatsink on SOM by default)

Features

Mechanical Parameters

• Dimensions: 60.00mm x 52.00mm (CPU Module), 195.33mm x 123.95mm (base board)
• PCB Layers: 14-layer design (CPU Module), 6-layer design (base board)
• Power supply: 3.3V (SOM), 12V (base board)
• Working temp.: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)

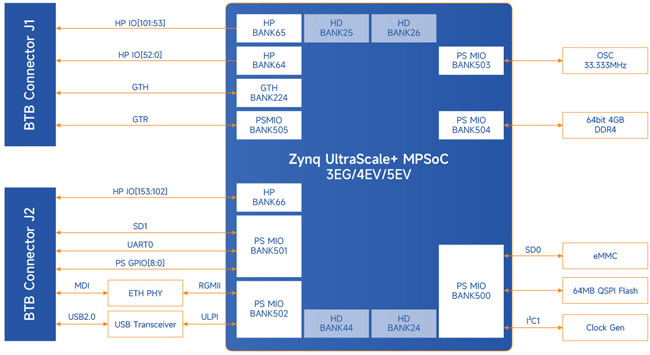

The MYD-CZU3EG-V3 Controller Board (MYC-CZU3EG-V3 SOM)

MPSoC

• Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784
  - 1.2GHz 64 bit Quad-core ARM® Cortex™-A53
  - 600MHz Dual-core ARM® Cortex™-R5F processor
  - ARM Mali™-400MP2 Graphics Processor
  - 16nm FinFET+ FPGA fabric

Memory

• 4GB DDR4 SDRAM (64bit, 2400MHz)
• 8GB eMMC Flash
• 64MB QSPI Flash

Peripherals and Signals Routed to Pins

• Gigabit Ethernet PHY
• USB PHY
• Power Module

• Clock Generator

• Watchdog
• Four LEDs
  - One yellow LED for ERROR_STATUS indicator (indicate a secure lockdown state)
  - One yellow LED for ERROR_OUT indicator (Asserted for accidental power loss, hardware error)
  - One green LED for PS_Done indicator (indicate the pl configuration is done)
  - One green LED for PS_INIT indicator (indicate the ps is initialized after a power-on reset)
• Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed socket bring out
  PS-GTS Unit:
  - PCIe 2.0 x4
  - 1x SATA 3.1
  - 1x DisplayPort 1.2a
  - 1x USB 3.0
  - 1x SGMII Ethernet
  PS Unit:
  - 1x USB 2.0
  - 1x RGMII
  - 1x SD/SDIO
  - 2x UART
  - 2x CAN 2.0B
  - 2x SPI
  - 2x I2C
  - GPIO
  PL Unit:
  - HP BANK64/65/66, IO voltage range supports 1.0～1.8V

  Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and the SOM pinout description file.

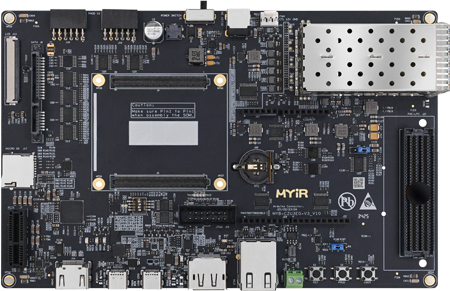

The MYD-CZU3EG-V3 Base Board (MYB-CZU3EG-V3)

PS Unit

• One USB 3.0 (Type-C interface)
• One USB Debug port
• One TF card slot
• One CAN interface
• One 10/100/1000Mbps Ethernet interface
• One PCIe 2.1 interface
• One SATA 3.1 interface
• One 2.54mm pitch 14-pin JTAG interface (PS, PL reused)

• Buttons (one user button, one system reset button and one ps-programming button)
• One DisplayPort (DP)
• Battery backed RTC

PL Unit

• One AMD standard LPFMC interface
• One HDMI interface (signals reused with LCD/TSP interface)
• Four SFP+ transceiver interfaces (reserved, only for Zynq UltraScale+ EV Devices)
• Two-channel Pmod
• ARDUINO user interface
• LCD/TSP interface (24-bit RGB, supports capacitive touch screen panels)
• LEDs
- One blue LED for power indicator
- One red LED for FPGA programming indicator
- One green LED for user defined

OS Support

• PetaLinux 2024.2
