MYC-CZU3EG-V3 System-On-Module |
- AMD Zynq UltraScale+ ZU3EG based on 1.2GHz Quad Arm Cortex-A53 and 600MHz Dual Arm Cortex-R5F Cores
- Graphics Processing Unit Arm Mali-400 MP2 up to 667 MHz
- 4GB DDR4 SDRAM (64 bit, 2400MHz)
- 8GB eMMC Flash, 64MB QSPI Flash
- On-board Gigabit Ethernet PHY, USB PHY, Power Module and Clock Generator
- PCIe 2.0 x4, USB 3.0, SATA 3.1, Gigabit Ethernet, DisplayPort
- Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed Headers
- Ready-to-Run Linux 6.6.40 |
|
|
|
| |
|
Please visit our new website at: https://en.myir.cn/ZU3EG4EV5EV/164.html
The MYC-CZU3EG-V3 SOM is a powerful MPSoC System-on-Module (SoM) based on AMD Zynq UltraScale+ MPSoC XCZU3EG which features a 1.2 GHz quad-core ARM Cortex-A53 64-bit application processor, a 600MHz dual-core real-time ARM Cortex-R5F processor, a Mali400 MP2 embedded GPU and 16nm FinFET+ Programmable Logic. It has 4GB DDR4, 8GB eMMC and 64MB QSPI Flash default memory configuration on board as well as integrated Ethernet PHY, USB PHY and Power Module to provide control and processing capabilities as a minimum embedded system. It is ready to run Linux 6.6.40, which comes with detailed documentations and software package.

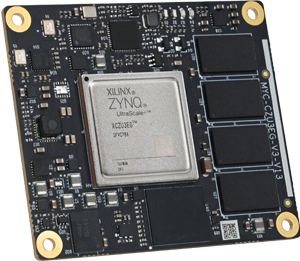

MYC-CZU3EG-V3 System-On-Module (Top-view)

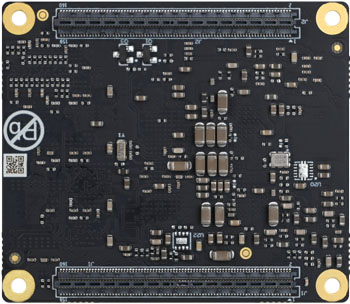

MYC-CZU3EG-V3 System-On-Module (Bottom-view)
Developers can simply design their own base board using the MYC-CZU3EG-V3 as the embedded controller which can help save time and reduce cost. MYIR has a reference base board design for customer evaluation and prototype. The whole development board MYD-CZU3EG-V3 takes full features of the AMD Zynq UltraScale+ MPSoC XCZU3EG to have explored a robust set of peripherals for a wide variety of applications including test and measurement, instrumentation, industrial cameras, and high-end industrial control.

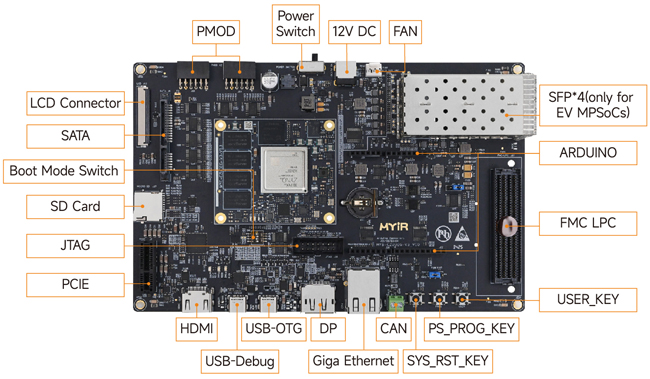

MYD-CZU3EG-V3 Development Board (Top-view, delivered with heatsink installed on SOM)
Features
Mechanical Parameters
-
Dimensions: 60.00 mm x 52.00 mm
-
PCB Layers: 14-layer design
-
Power supply: 3.3V
-
Working temp.: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)
MPSoC
-
Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784
- 1.2GHz 64 bit Quad-core ARM® Cortex™-A53
- 600MHz Dual-core ARM® Cortex™-R5F processor
- ARM Mali™-400MP2 Graphics Processor
- 16nm FinFET+ FPGA fabric
Memory
-
4GB DDR4 SDRAM (64bit, 2400MHz)
-
8GB eMMC Flash
-
64MB QSPI Flash
Peripherals and Signals Routed to Pins
-
Gigabit Ethernet PHY
-
USB PHY
-
Power Module
-
Clock Generator
-
Watchdog
-
Four LEDs
- One yellow LED for ERROR_STATUS indicator (indicate a secure lockdown state)
- One yellow LED for ERROR_OUT indicator (Asserted for accidental power loss, hardware error)
- One green LED for PS_Done indicator (indicate the pl configuration is done)
- One green LED for PS_INIT indicator (indicate the ps is initialized after a power-on reset)
-
Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed headers bring out
PS-GTS Unit:
- PCIe 2.0 x4
- 1x SATA 3.1
- 1x DisplayPort 1.2a
- 1x USB 3.0
- 1x SGMII Ethernet
PS Unit:
- 1x USB 2.0
- 1x RGMII
- 1x SD/SDIO
- 2x UART
- 2x CAN 2.0B
- 2x SPI
- 2x I2C
- GPIO
PL Unit:
- HP BANK64/65/66, IO voltage range supports 1.0～1.8V
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and the SOM pinout description file.
OS Support
Other MYIR's Xilinx Products
http://www.myirtech.com/xilinxseries.asp
Z-turn Board V2 Single Board Computer (based on Zynq-7010 / 7020)
Z-turn Lite Single Board Computer (based on Zynq-7007S / Zynq-7010)
MYD-C7Z015 Development Board (MYC-C7Z015 CPU Module as core board)
MYD-Y7Z010/20-V2 Development Board (MYC-Y7Z010/20-V2 CPU Module as core board)
MYD-C7Z010/20-V2 Development Board (MYC-C7Z010/20-V2 CPU Module as core board)
FZ3 Card - deep learning accelerator card (based on Xilinx Zynq UltraScale+ ZU3EG MPSoC)
FZ5 Card (AI Accelerator Card based on Zynq UltraScale+ ZU5EV MPSoC)
|
Hardware Features
Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing. Built on a common real-time processor and programmable logic equipped platform, three distinct variants include dual application processor (CG) devices, quad application processor and GPU (EG) devices, and video codec (EV) devices.
Zynq UltraScale+ MPSoCs
The Zynq UltraScale+ family provides footprint compatibility to enable users to migrate designs from one device to another. Any two packages with the same footprint identifier code (last letter and number sequence) are footprint compatible. MYIR is using the XCZU3EG-1SFVC784 MPSoC for MYD-CZU3EG-V2 Development Board, XCZU4EV-1SFVC784 MPSoC for MYD-CZU4EV-V2 Development Board, XCZU5EV-2SFVC784 MPSoC for MYD-CZU5EV-V2 Development Board by default, the C784 package covers the widest footprint compatibilities that enable users to select devices among CG, EG and EV.
Zynq UltraScale+ MPSoC Device Migration Table
MYIR may also supply the MYC-CZU3EG-V2 CPU Modules with XCZU2CG, XCZU3CG, XCZU4EV or XCZU5EV MPSoC as options. The main features for the MPSoC devices are summarized as below.
|
Device
|
XCZU2CG
|
XCZU3CG
|
XCZU3EG
|
XCZU4EV
|
XCZU5EV
|
|
Logic cells (k)
|
103
|
154
|
154
|
192
|
256
|
|
CLB Flip-Flops (K)
|
94
|
141
|
141
|
176
|
234
|
|
CLB LUTs (K)
|
47
|
71
|
71
|
88
|
117
|
|
Block RAM (Mb)
|
5.3
|
7.6
|
7.6
|
4.5
|
5.1
|
|
UltraRAM (Mb)
|
-
|
-
|
-
|
13.5
|
18.0
|
|
DSP Slices
|
240
|
360
|
360
|
728
|
1,248
|
|
GTX transceivers
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s)
|
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s)
|
|
Processor Units
|
|
Application Processor Unit
|
Dual-core ARM® Cortex™-A53 MPCore™ up to 1.3GHz
|
Quad-core ARM® Cortex™-A53 MPCore™ up to 1.5GHz
|
|
Memory w/ECC
|
L1 Cache 32KB I / D per core, L2 Cache 1MB, on-chip Memory 256KB
|
|
Real-Time Processor Unit
|
Dual-core ARM Cortex-R5 MPCore™ up to 600MHz
|
|
Memory w/ECC
|
L1 Cache 32KB I / D per core, Tightly Coupled Memory 128KB per core
|
|
Graphics Processing Unit
|
-
|
-
|
Mali™-400 MP2 up to 667MHz
|
|
Video Codec
|
-
|
-
|
-
|
H.264 / H.265
|
|
Memory L2 Cache
|
64KB
|
|
External Memory, Connectivity, Integrated Block Functionality
|
|
Dynamic Memory Interface
|
x32/x64: DDR4, LPDDR4, DDR3, DDR3L, LPDDR3 with ECC
|
|
Static Memory Interfaces
|
NAND, 2x Quad-SPI
|
|
High-Speed Connectivity
|
PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet
|
|
General Connectivity
|
2 x USB 2.0, 2 x SD/SDIO, 2 x UART, 2 x CAN 2.0B, 2 x I2C, 2 x SPI, 4 x 32b GPIO
|
|
Power Management
|
Full / Low / PL / Battery Power Domains
|
|
Security
|
RSA, AES, and SHA
|
|
AMS - System Monitor
|
10-bit, 1MSPS – Temperature and Voltage Monitor
|
Zynq UltraScale+ MPSoC Device Selection Guide

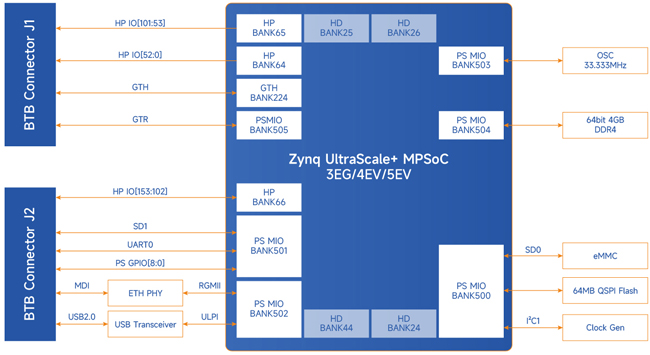

MYC-CZU3EG-V3 Function Block Diagram
|
Software Features
The MYC-CZU3EG-V3 Module is preloaded with PetaLinux 2024.2. User can download the full SDK from our developer center. The software package features as below:
|
Item
|
Features
|
Description
|
Source Code
|
|
Bootloader
|
U-boot
|
uboot 2024.01
|
YES
|
|
Kernel
|
Linux 6.6.40
|
MYD-CZU3EG-V3 Customized Kernel
|
YES
|
|
Drivers
|
PMOD
|
PMOD driver
|
YES
|
|
Arduino
|
Arduino driver
|
YES
|
|
CAN
|
CAN driver
|
YES
|
|
HDMI
|
HDMI driver
|
YES
|
|
LCD
|
LCD driver
|
YES
|
|
Micro SD
|
Micro SD driver
|
YES
|
|
I2C
|
I2C driver
|
YES
|
|
SATA
|
SATA driver
|
YES
|
|
PCIE
|
PCIE driver
|
YES
|
|
DP
|
DP driver
|
YES
|
|
Ethernet
|
Ethernet driver
|
YES
|
|
Watchdog
|
Watchdog driver
|
YES
|
|
File System
|
myir-image-czu3eg-hdmi
|
HDMI/DP display image built with Petalinux
|
YES
|
|
myir-image-czu3eg-lcd
|
LCD display image built with Petalinux
|
YES
|
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
MYC-CZU3EG-V3 System-On-Module Overview
|
1.96 MB
|
|
|
2
|
Zynq UltraScale+ MPSoC Product Selection Guide
|
1.88 MB
|
|
|
3
|
MYD-CZU3EG-V3 Development Board Overview
|
2.51 MB
|
|
|
MYC-CZU3EG-V3 System-On-Module (Top-view)
MYC-CZU3EG-V3 System-On-Module (Bottom-view)

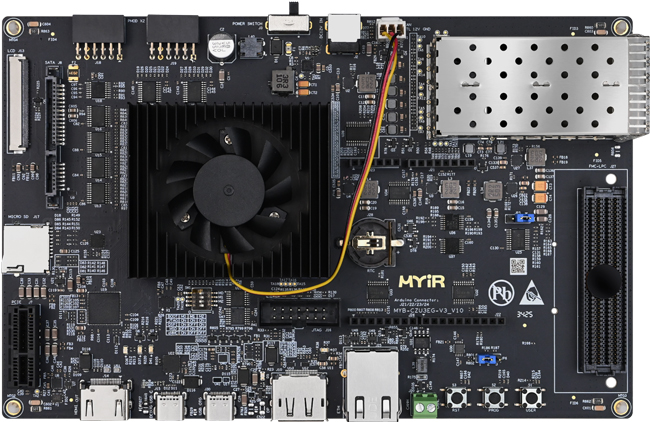

MYD-CZU3EG-V3 Development Board (Top-view)
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MYC-CZU3EG-V3 System-On-Module
(Part No.: MYC-CZU3EG-V3-8E4D-1200-C)
|
One MYC-CZU3EG-V3 CPU Module
|
USD319
|
|
|
MYC-CZU3EG-V3 System-On-Module
(Part No.: MYC-CZU3EG-V3-8E4D-1200-I)
|
One MYC-CZU3EG-V3 CPU Module
|
USD339
|
|
|
|
- One MYD-CZU3EG-V3 Board
(including the base board and SOM
with installed active heatsink)
- One USB Type-C cable
- One Micro USB Cable
- One HDMI Cable
- One RJ45 Ethernet Cable
- One 32GB Micro SD Card
- One 12V/2A Power adapter
- One Quick Start Guide
|
USD429
|
|
|
MYD-CZU3EG-V3 Development Board
(Part No.: MYD-CZU3EG-V3-8E4D-1200-I)
|
USD449
|
|
|
MY-LCD70TP-C LCD Module
(Part No.: MY-TFT070CV2)
|
7-inch LCD Module with capacitive touch screen
|
USD89
|
|
|
Note:
1. One MYD-CZU3EG-V3 Development Board includes one MYC-CZU3EG-V3 SOM with installed active heatsink and one base board. If you need more SOMs, you can order extra ones.
3. Discount is available for mass orders. Please contact MYIR for inquiries.
4. We accept custom design based on the MYD-CZU3EG-V3, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
|
|
|
| |
|
|
|
|
