MY-EVC700S-V2 IPC Box
|
- Integrated Industrial Gateway Solution Based on Allwinner T113-i
- Up to 1.2GHz Dual-core ARM Cortex-A7 MPU with Single-core HiFi4 DSP
- 512MB DDR3, 4GB eMMC, 32KB EEPROM
- Debug UART, 2x RS232, 2xRS485, 2x USB Host, 2x CAN, TF Card Slot, Digital Input/Output
- 1x 10/100Mbps Ethernet, WiFi/Bluetooth, 4G LTE Module (Quectel EC200MCNLF-I03-MN0CA)
- LVDS Display Interface, Audio
- Supports LVDS-to-HDMI Customization (MOQ200)
- Supports Linux OS
- CE Certificated, Long-term Availability
|
The MY-EVC700S-V2 Industrial PC Box provides an industrial-grade computing solution with robust construction for reliable gateway applications. Encased in a durable metal enclosure with precision-cut openings for peripheral access, this compact system integrates the MYC-YT113i System-On-Module (SOM) with a custom baseboard, equipped with 512MB DDR3 memory and 4GB eMMC flash storage. It delivers a comprehensive connectivity options including RS232/RS485 serial ports, USB 2.0 ports, Ethernet interface, CAN bus and a microSD card slot, along with LVDS display support and audio output capabilities. The architecture enables flexible wireless communications through an integrated WiFi/Bluetooth module and a USB-based 4G LTE module. Pre-installed with Linux OS with QT framework, the system provides source code access to u-boot, kernel and drivers, and associated development tools as well as detailed documentation to enable custom application development.

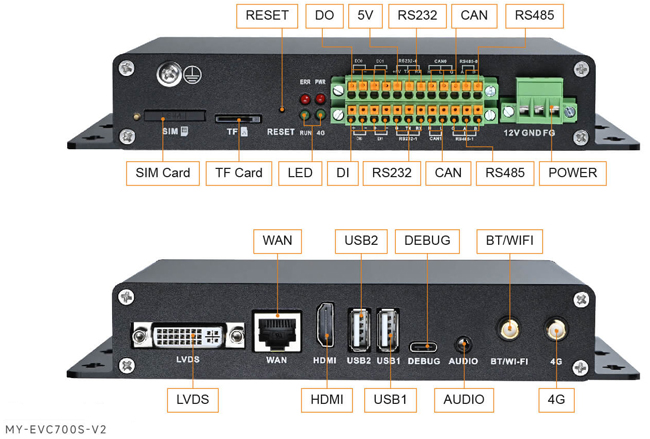

MY-EVC700S-V2 Interface Diagram

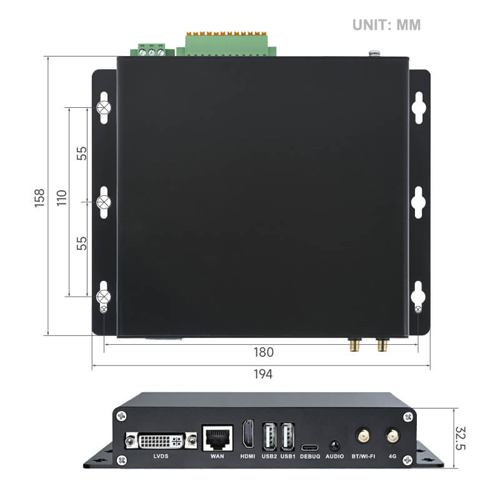

MY-EVC700S-V2 Dimensions

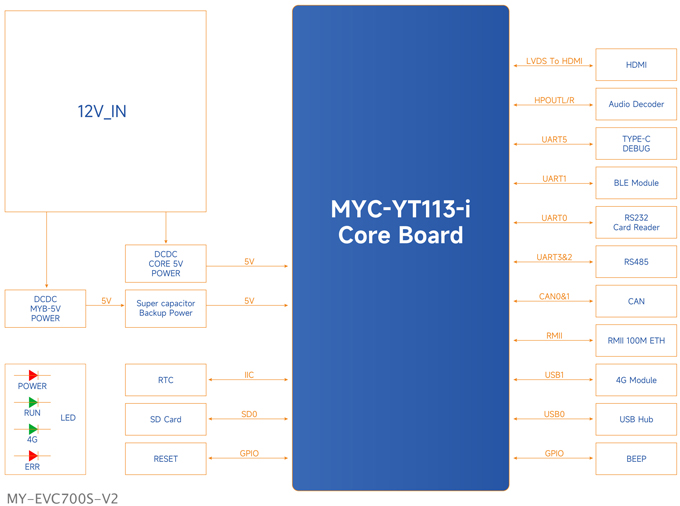

MY-EVC700S-V2 Function Block Diagram
Hardware Features
|
Item
|
Features
|
|
SoC
|
Allwinner T113-i processor
- Up to 1.2GHz Dual-core Arm Cortex-A7 CPU
- Single-core HiFi4 DSP
- Supports H.265/H.264 4K video decoding
|
|
Memory
|
512MB DDR3
|
|
Storage
|
4GB eMMC
32KB EEPROM
1x Micro SD card slot
|
|
Communication Interfaces
|
2x USB 2.0 Host
1x 10/100Mbps Ethernet Interface (RJ45)
WiFi/Bluetooth Module (supports BT 5.0)
USB based 4G LTE Module (with Quectel EC200MCNLF-I03-MN0CA)
1x SIM card slot
2x Antenna interfaces (One for WiFi/BT and one for 4G)
2x RS232
2x isolated RS485
2x isolated CAN
2x Digital input (DI)
2x Digital output (DO)
|
|
Multimedia Interfaces
|
1x LVDS-to-HDMI Interface (Reserved function, can be customized)
1x Audio output
1x LVDS Display Interface
1x Buzzer
|
|
Others
|
1x Reset button
4x LEDs (PWR, ERR, RUN, 4G)
1x RTC
|
|
Power supply
|
Rated power: ≥ 15W;
Rated voltage: DC12V, Input range DC9V-15V
|
|
Dimensions
|
194mm x 158mm x 32.5mm
|
|
Working Temp.
|
-40°C ~+85°C
|
Software Features
The MY-EVC700S-V2 offers supports for Linux operating systems and is equipped with comprehensive software packages. To assist clients in speeding up their projects, the kernel and numerous peripheral drivers are provided in source code. Below is a brief overview of the key software feature:
|
Item
|
Feature
|
Description
|
Source Code
|
|
Bootloader
|
U-boot
|
Boot boot program uboot_2018.05
|
YES
|
|
Linux kernel
|
Linux kernel
|
Customized base on official kernel_5.4.61 version
|
YES
|
|
Drivers
|
USB Host
|
USB Host driver
|
YES
|
|
USB OTG
|
USB OTG driver
|
YES
|
|
I2C
|
I2C bus driver
|
YES
|
|
SPI
|
SPI bus driver
|
YES
|
|
Ethernet
|
YT8531SH driver
|
YES
|
|
SDHI
|
EMMC/SD card storage driver
|
YES
|
|
LVDS
|
LCD driver
|
YES
|
|
Touch
|
Touch screen driver
|
YES
|
|
Audio
|
SPDIF driver
|
YES
|
|
Watchdog
|
Watchdog driver
|
YES
|
|
4G/5G
|
4G/5G driver
|
YES
|
|
PWM
|
PWM control driver
|
YES
|
|
ADC
|
ADC driver
|
YES
|
|
RTC
|
RTC driver
|
YES
|
|
GPIO
|
Universal GPIO driver
|
YES
|
|
UART
|
RS232/RS485/TTL driver
|
YES
|
|
CAN
|
CAN driver
|
YES
|
|
WIFI
|
RTL8731BU driver
|
YES
|
|
Images
|
t113i_linux_myir_emmc_core
|
Image built with Buildroot, excluding GUI interface
|
YES
|
|
t113i_linux_myir_emmc_full
|
A fully functional image built with Buildroot
|
YES
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
MY-EVC700S-V2 IPC Box Overview
|
633 KB
|
|
|
2
|
MYC-YT113i System-On-Module Overview
|
1.00 MB
|
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MY-EVC700S-V2 IPC Box
(Part No.: MY-EVC700S-V2)
|
- One MY-EVC700S IPC Box
- One Quick Start Guide
- One 12V/3A Power adapter
|
USD129
|
|
|
MY-YT113i System-On-Module
(Part No.: MYC-YT113i-4E512D-110-I)
|
- One MYC-YT113i SOM
|
USD19.80
|
|
|
Note:
1. The HDMI is reserved function, which can be customized, please inquire MYIR for details.
2. Bulk discounts are available.
3. We cater to custom design requests based on the MY-EVC700S-V2, whether it involves reducing, adding or modifying the existing hardware components to suit the customers' specific needs.
|
|
