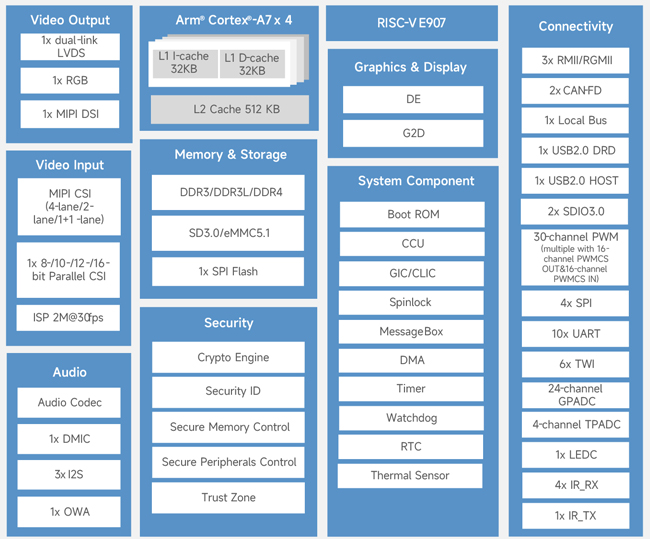

The MYC-YT153MX is a 39x37mm compact System-on-Module (SoM) powered by the Allwinner T153MX-BCX processor, featuring 1.6GHz quad-core ARM Cortex-A7 and 600MHz RISC-V E907 cores. It includes G2D graphics acceleration and an Image Signal Processor (ISP), supporting RGB/LVDS/MIPI-DSI displays and CSI camera inputs. With 512MB/1GB DDR3(L) and 8GB eMMC/512MB NAND, this 190-pin module offers 3 Gigabit Ethernet ports, USB 2.0, multiple UART/CAN FD/TWI/SPI interfaces, and audio input/output. It is ideal for industrial controllers, Human-Machine Interfaces (HMIs), gateways, robots, and other high-reliability applications.

MYC-YT153MX Top-view and Bottom-view
The MYC-YT153MX supports the Linux 5.10 operating system, offering flexibility and adaptability to meet diverse project needs. To facilitate a smooth development process from design to deployment, MYIR provides a comprehensive software bundle, which includes kernel and driver source code, as well as essential compilation tools.
MYIR offers two development boards, MYD-YT153MX and MYD-YT153MX-MINI, for evaluating and prototyping based on Allwinner T153 processors. Both boards are built around the MYC-YT153MX System-on-Module (SOM), which delivers extensive connectivity through its 140-pin castellated-hole and 50-pin LGA expansion interface.
MYD-YT153MX Development Board

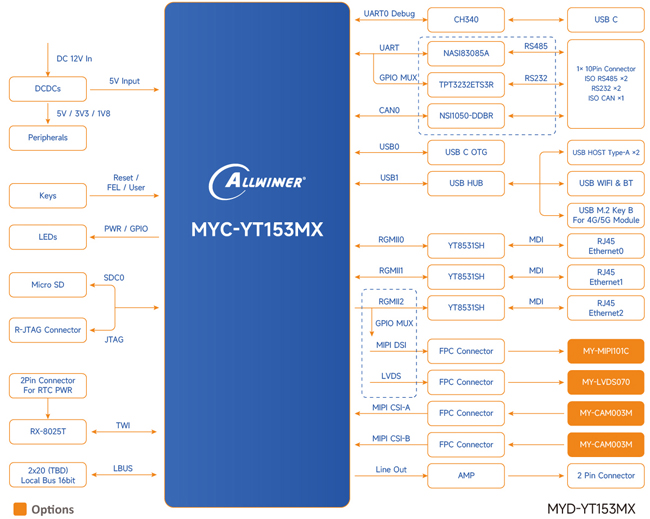

The MYD-YT153MX is equipped with an integrated WiFi/BT module and features versatile connectivity options, including three Gigabit Ethernet ports, two USB 2.0 Host interfaces, one USB 2.0 OTG interface, two RS232, two RS485, and one CAN interface via Phoenix terminals. It also has LVDS, MIPI-DSI, and dual MIPI-CSI interfaces for display and camera integration, along with a LINE OUT audio port. Additionally, there is a microSD card slot, a SIM card slot, a Localbus interface, and a 5G/4G module interface with a USB based M.2 Type B socket, as well as dedicated Debug and JTAG interfaces. To enhance its capabilities, MYIR provides optional accessories such as the MY-LVDS070C 7-inch LVDS Display Module and the MY-CAM003M MIPI Camera Module.

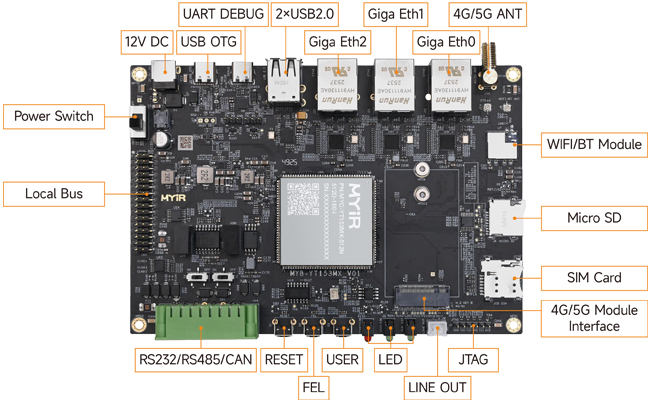

MYD-YT153MX Top-view

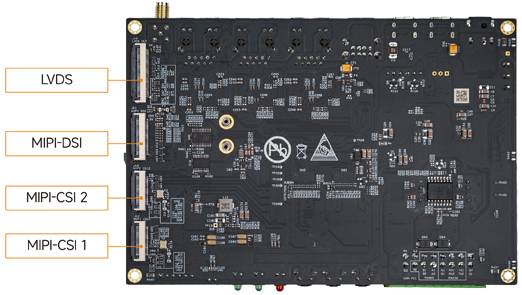

MYD-YT153MX Bottom-view
MYD-YT153MX-MINI Development Board

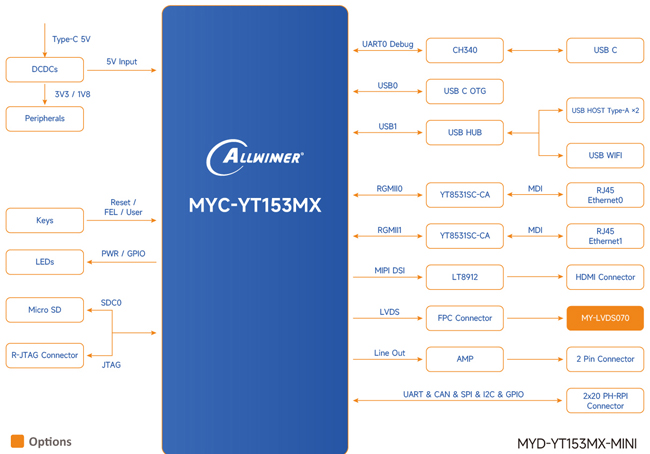

The MYD-YT153MX-MINI is designed as a compact and cost-effective variant of the MYD-YT153MX. This board features dual Gigabit Ethernet ports, two USB 2.0 Host interfaces, a USB 2.0 OTG interface, and a USB 2.0 debug port. It supports both HDMI and LVDS displays, along with a LINE OUT audio port. It has a microSD card slot and a 40-pin Raspberry Pi compatible expansion header, as well as an integrated Wi-Fi module and a JTAG interface for development. MYIR offers optional MY-LVDS070C 7-inch LVDS Display Module and the MY-WIREDCOM Expansion Module for the board.

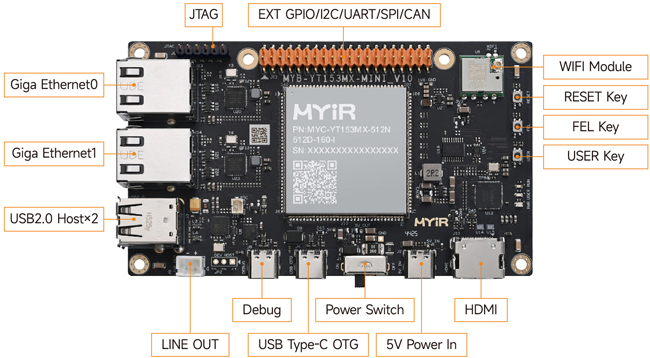

MYD-YT153MX-MINI Top-view

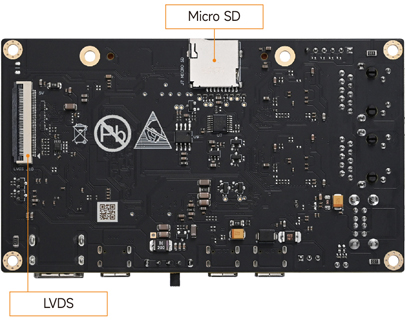

MYD-YT153MX-MINI Bottom-view
Features
Mechanical Parameters
-
Dimensions: 37mm x 39mm
-
PCB Layers: 10-layer design
-
Power supply: 5V/2A
-
Working temperature: -40~85 Celsius (industrial grade)
Processor
-
Allwinner T153 processor (T153MX-BCX)
- Quad-Core Arm Cortex-A7, up to 1.6GHz
- RISC-V XuanTie E907, up to 600MHz
- Display Enable (DE) and Graphics 2D (G2D) acceleration
Memory

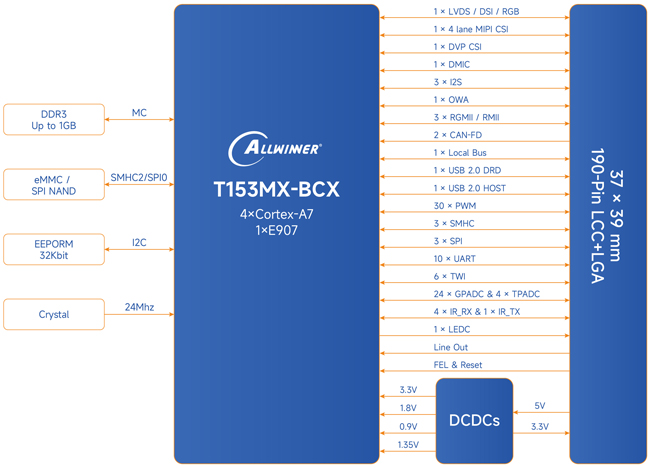

Peripherals and Signals Routed to Pins
-
140-pin Castellated-Hole and 50-pin LGA Expansion Interfaces
- 3x RGMII/RMII
- 1x USB 2.0 Host
- 1x USB 2.0 DRD
- 3x SMHC (SMHC0/SMHC1/SMHC3)
- 1x Local Bus
- 10x UART
- 2x CAN FD
- 6x TWI
- 30x PWM
- 3x SPI
- 1x DSMC Master, 1x DSMC Master
- 1x IR-TX
- 4x IR-RX
- 1x LEDC
- 4x TPADC (12-bit resolution and a sampling frequency of up to 750KHz.)-24x GPADC (12-bit resolution, a sampling frequency of up to 1MHz, and an analog input range of 0~1.8V.)
- 2x MIPI CSI (Supports 1x 4Lane or 2x 2Lane)
- 1x Parallel CSI (Supports 8/10/12/16 bit width)
- 1x MIPI DSI (Supports 4 lanes, maximum support 1920x1080@60fps)
- 1x dual-link LVDS (Dual LVDS, maximum resolution 1920x1080@60fps; Single channel LVDS, maximum resolution support 1366x768@60fps)
- 1x LCD (Supports 24 bit RGB interface mode, maximum resolution supported 1920x1080@60fps Supports RGB888, RGB666, RGB565 pixel formats, etc)
- 1x DMIC
- 1x OWA
- 3x I2S
-1x Audio Codec
-1x Differential LINEOUTP/LINEOUTN output
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.
OS Support
Other MYIR's Allwinner Products
https://www.myirtech.com/allwinnerseries.asp
MYD-YT507H Development Board (MYC-YT507H as core board, Allwinner T507-H)
MYD-YT113i Development Board (MYC-YT113i as core board, Allwinner T113-i)
|
