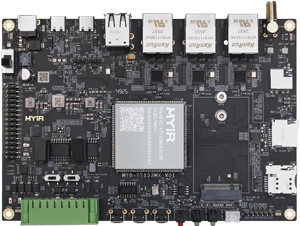

MYD-YT153MX Development Board

The MYD-YT153MX development board is an advanced evaluation platform designed for the Allwinner T153 processor. This processor features a quad-core Arm Cortex-A7 running at 1.6GHz and a single-core RISC-V E907 operating at 600MHz, offering powerful computing performance and fast response capabilities. The T153 supports rich multimedia resources: RGB, LVDS, and MIPI-DSI, and also integrates an ISP image signal processor, supporting one 4-lane sensor. The processor also supports three Gigabit Ethernet interfaces, CAN-FD, LocalBus, 24 GPADCs, 30 PWMs, 6 TWIs, 10 UARTs, and 4 SPIs; suitable for industrial controllers, industrial HMIs, industrial gateways, robots, industrial vision equipment, power terminals, charging piles, and other scenarios.

The MYD-YT153MX is equipped with an integrated WiFi/BT module and features versatile connectivity options, including three Gigabit Ethernet ports, two USB 2.0 Host interfaces, one USB 2.0 OTG interface, two RS232, two RS485, and one CAN interface via Phoenix terminals. It also has LVDS, MIPI-DSI, and dual MIPI-CSI interfaces for display and camera integration, along with a LINE OUT audio port. Additionally, there is a microSD card slot, a SIM card slot, a Localbus interface, and a 5G/4G module interface with a USB based M.2 Type B socket, as well as dedicated Debug and JTAG interfaces. To enhance its capabilities, MYIR provides optional accessories such as the MY-LVDS070C 7-inch LVDS Display Module and the MY-CAM003M MIPI Camera Module.

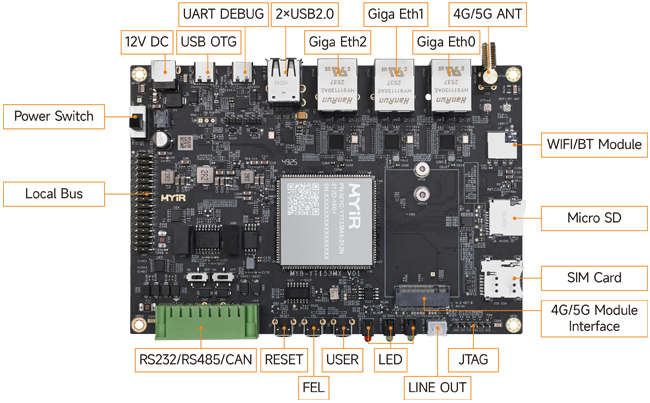

MYD-YT153MX Development Board Top-view

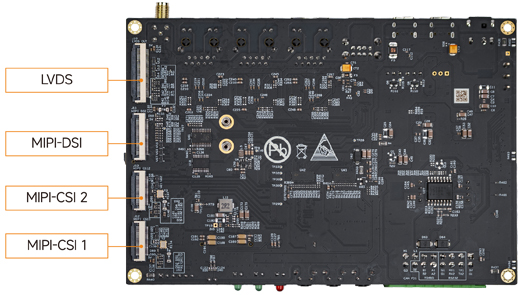

MYD-YT153MX Development Board Bottom-view

The MYD-YT153MX Development Board is capable of running Linux OS. To support rapid development, MYIR provides a comprehensive software package, including the U-Boot bootloader, full source code for all peripheral drivers, essential development tools, and detailed documentation.

The board comes standard with necessary accessories: a 12V/2A power adapter, a USB Type-A to Type-C cable, and a Quick Start Guide. For expanded functionality, optional accessories such as the MY-LVDS070C 7-inch LCD Module and the MY-CAM003M MIPI Camera Module are also available.

Features

Mechanical Parameters

• Dimensions: 160mm x 110mm (base board), 37mm x 39mm (SOM)
• PCB Layers: 6-layer design (base board), 10-layer design (SOM)
• Power supply: 12V/2A (base board), 5V/2A (SOM)
• Working temperature: -40~85 Celsius (industrial grade)



The MYD-YT153MX Controller Board (MYC-YT153MX)

MYC-YT153MX Top-view and Bottom-view (delivered with shielding cover by default)

Processor

• Allwinner T153 processor (T153MX-BCX)


  - Quad-Core Arm Cortex-A7, up to 1.6GHz
  - RISC-V XuanTie E907, up to 600MHz
  - Display Enable (DE) and Graphics 2D (G2D) acceleration

Memory

• 512MB/1GB DDR3(L)

• 512MB Nand Flash/8GB eMMC

• 32KB EEPROM

Peripherals and Signals Routed to Pins

• 140-pin Castellated-Hole and 50-pin LGA Expansion Interfaces
  - 3x RGMII/RMII
  - 1x USB2.0 HOST
  - 1x USB2.0 DRD
  - 3x SMHC (SMHC0/SMHC1/SMHC3)
  - 1x Local Bus
  - 10x UART
  - 2x CAN FD
  - 6x TWI
  - 30x PWM
  - 3x SPI
  - 1x DSMC Master, 1x DSMC Master
  - 1x IR-TX
  - 4x IR-RX
  - 1x LEDC
  - 24x GPADC (12-bit resolution, a sampling frequency of up to 1MHz, and an analog input range of 0~1.8V.)


  - 4x TPADC (12-bit resolution and a sampling frequency of up to 750KHz.)
  - 2x MIPI CSI (Supports 1x 4Lane or 2x 2Lane)
  - 1x Parallel CSI (Supports 8/10/12/16 bit width)
  - 1x MIPI DSI (Supports 4 lanes, maximum support 1920x1080@60fps)- 1x dual-link LVDS (Dual LVDS, maximum resolution 1920x1080@60fps; Single channel LVDS, maximum resolution support 1366x768@60fps)


  - 1x LCD (Supports 24 bit RGB interface mode, maximum resolution supported 1920x1080@60fps Supports RGB888, RGB666, RGB565 pixel formats, etc)


  - 1x DMIC
  - 1x OWA
  - 3x I2S
  -1x Audio Codec
  -1x Differential LINEOUTP/LINEOUTN output

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and SOM pin-out description file.

The MYD-YT153MX Development Board Base Board

• 1x Power Jack
• 1x Power Switch (On/Off)
• 2x RS232
• 2x RS485
• 1x USB Debug Port (TTL to USB, Type-C)
• 2x USB 2.0 Host (Type-A)
• 1x USB 2.0 OTG (Type-C)
• 3x Gigabit Ethernet
• 1x WiFi/BT module
• 1x M.2 B-type socket for USB based 4G/5G module
• 1x SIM card slot
• 1x CAN
• 1x Micro SD card slot
• 1x JTAG interface
• 1x 16-bit Local Bus
• 1x LVDS interface
• 1x MIPI-DSI interface
• 2x MIPI-CSI interfaces
• 1x Audio interface (Line out)
• 3x Buttons (1x USER, 1x RESET, 1x FEL)
• 3x LEDs (1x PWR, 1x RUN, 1x USER)



OS Support

• Linux 5.10.198
