Measuring only 43mm by 45mm, the MYC-YM62LX is a compact System-on Module (SoM) based on the TI AM62Lx (AM62L32BOGHAANBR) microprocessor, which feature up to 1.25GHz one dual-core ARM Cortex-A53. In addition to the AM62Lx MPU, the MYC-YM62LX is equipped with 512MB/1GB DDR4 memory, 8GB eMMC/512MB NAND flash storage, and 4KB EEPROM. The expansion interface comes in a 164-pin LCC package, offering various communication and control interfaces such as RGMII, MIPI DSI, USB2.0, MMC, I2C, ADC, CANFD, UART, SPI, and GPMC communication bus, facilitating connection with other devices. MYIR provides complete software package for Linux running on the MYC-YM62LX to help users launch their development quickly and easily. The module is well-suited for IoT, HMI, and general applications with display functions, as well as some AIoT applications such as home appliance display and control, handheld POS, and building intercom.

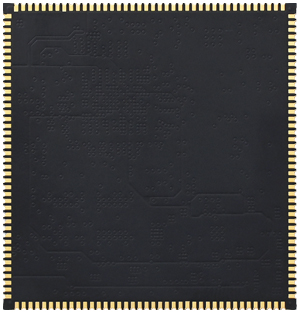

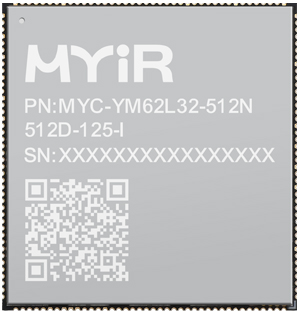

MYC-YM62LX System-On-Module (Top-view and Bottom-view)
The MYD-YM62LX development board integrates the MYC-YM62LX System-On-Module (SOM) with a dedicated carrier board, connected via a 164-pin expansion interface. The carrier board features a double-sided component layout and delivers comprehensive connectivity, including dual Gigabit Ethernet, one USB 2.0 port, one USB 2.0 Host port, one RS232, two RS485, one CAN interface, and 4-channel ADC. It also supports WiFi/Bluetooth via an onboard module, MIPI-DSI display output, and audio input/output. For enhanced development flexibility, MYIR offers the MY-MIPI101C-V2 10.1-inch LCD Module as an optional accessory compatible with the MYD-YM62LX board, enabling a streamlined and effective development experience.

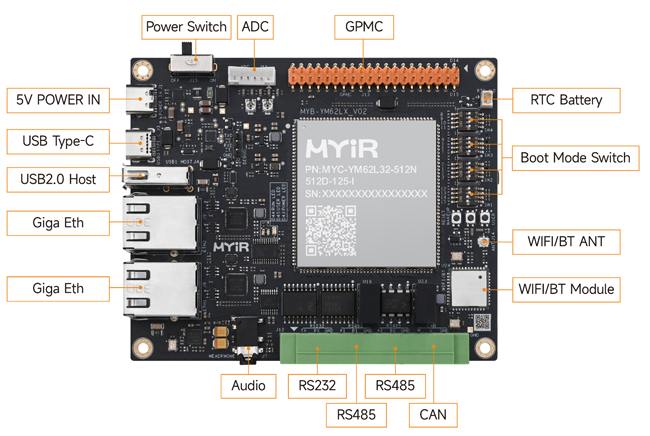

MYD-YM62LX Development Board Top-view

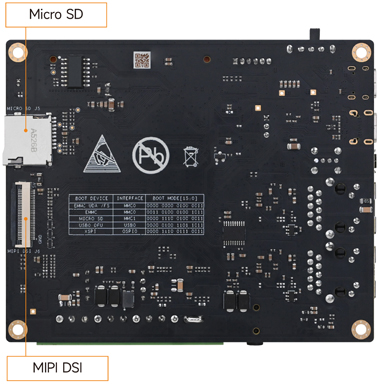

MYD-YM62LX Development Board Bottom-view

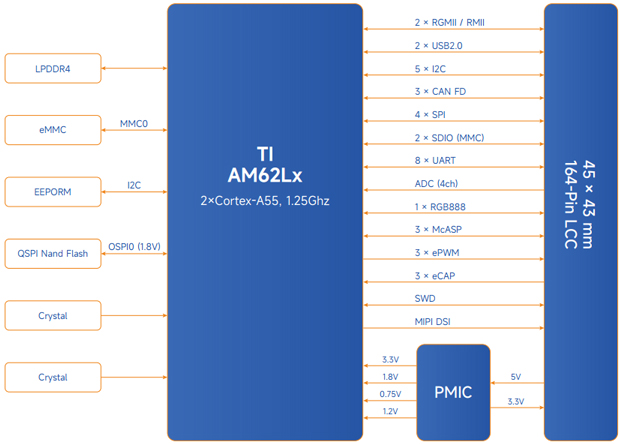

Features
Mechanical Parameters
-
Dimensions: 43mm x 45mm
-
PCB Layers: 10-layer design
-
Power supply: 5V/2A
-
Working temperature: -40~85 Celsius (industrial grade)

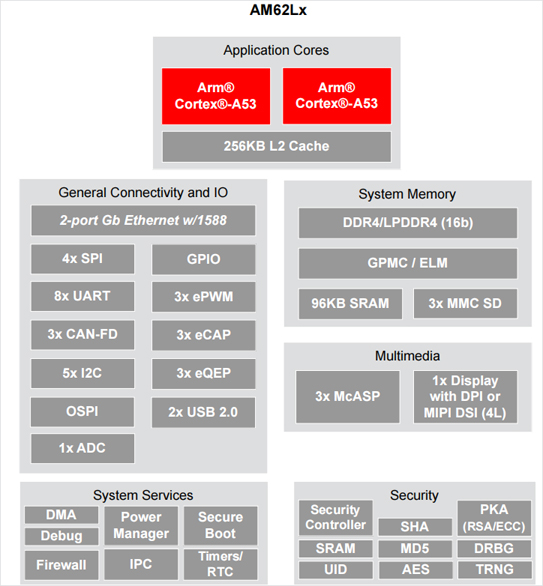

Processor
-
TI AM62Lx processor (AM62L32BOGHAANBR)
- Dual 64-bit Arm Cortex-A53 microprocessor subsystem up to 1.25GHz
- Dual-core Cortex-A53 with 256KB L2 Cache
- Each A53 core has 32KB L1 DCache and 32KB L1 ICache
Memory
-
512MB/1GB DDR4
-
512MB Nand Flash/8GB eMMC
-
4KB EEPROM
Peripherals and Signals Routed to Pins
-
164-pin Castellated-Hole Expansion Interfaces (LCC Package)
- 2x 4-bit SD/SDIO
- 1x MIPI-DSI
- 2x RGMII/RMII
- 3x Multichannel Audio Serial Ports（McASPs ）
- 2x USB 2.0, Support OTG
- 8x UART (UART0 is the Debug port)
- 3x CAN-FD
- 4x SPI
- 5x I2C
- 1x 4-ch ADC (10-bit Analog-to-Digital Converter，Up to 1MSPS）
- 3x ePWM, enhanced PWM modules
- 3x eQEP, enhanced Quadrature Encoder Pulse modules
- 3x eCAP, enhanced Capture modules
- 1x GPMC (General-Purpose Memory Controller, up to 133MHz)
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and the SOM pinout description file.
