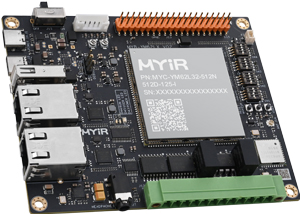

The MYD-YM62LX development board is an advanced evaluation platform for the TI AM62Lx processor. This highly integrated SoC features a dual-core Arm Cortex - A53 CPU running at 1.25 GHz, with 32KB L1 DCache and 32KB L1 ICache per core, offering strong processing performance and fast response capabilities.
The MYD-YM62LX integrates a MYC-YM62LX System-On-Module (SOM) with a dedicated carrier board, which are connected via a 164-pin expansion interface. The SOM includes the processor, 512MB/1GB DDR4 memory, 8GB eMMC/512MB NAND flash storage, 4KB EEPROM, and some circuits to form a minimum system. The carrier board brings out as many features of the processor as possible and showcases the AM62Lx’s extensive peripheral set, including dual Gigabit Ethernet, one USB 2.0 port, one USB 2.0 Host port, one RS232, two RS485, one CAN interface, and 4-channel ADC. It also supports WiFi/Bluetooth via an onboard module, MIPI-DSI display output, and audio input/output. The board is ready to run Linux and is provided with complete software package as well as detailed documentations. As a comprehensive and reliable reference design, the MYD-YM62LX provides an ideal foundation for developing solutions based on the TI AM62Lx processor family.
For enhanced development flexibility, MYIR also offers the MY-MIPI101C-V2 10.1-inch LCD Module as an optional accessory compatible with the MYD-YM62LX board, enabling a streamlined and effective development experience.

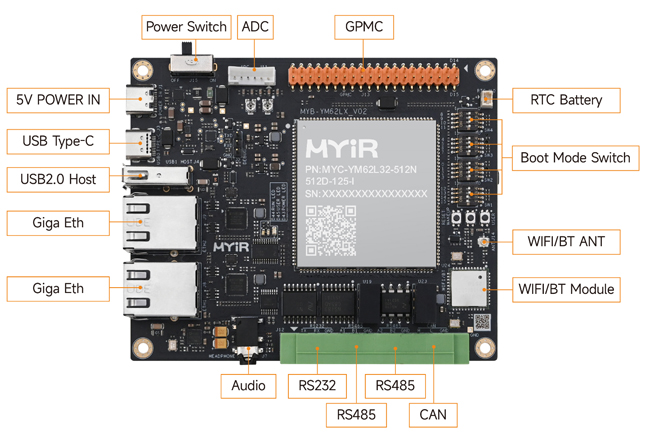

MYD-YM62LX Development Board Top-view

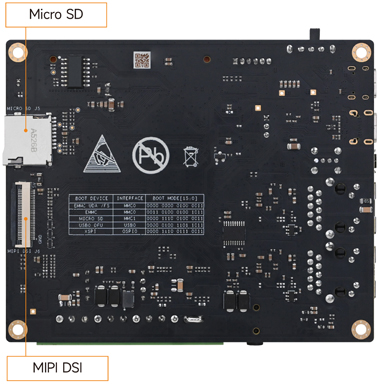

MYD-YM62LX Development Board Bottom-view
Features
Mechanical Parameters
-
Dimensions: 110mm x 90mm (base board), 43mm x 45mm (SOM)
-
PCB Layers: 6-layer design (base board), 10-layer design (SOM)
-
Supply voltage: 5V/3A (base board), 5V/2A (SOM)
-
Working temperature: -40~85 Celsius (industrial grade)

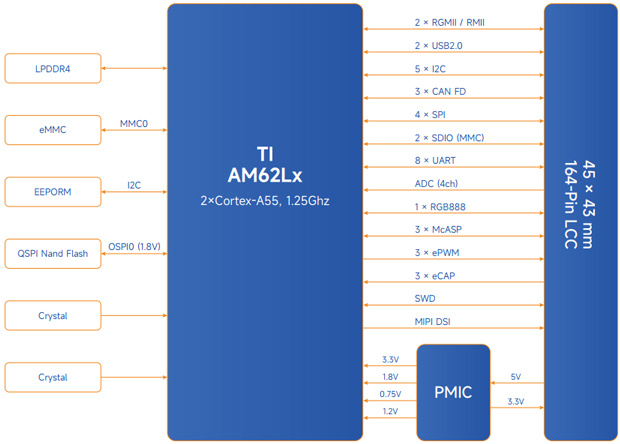

The MYD-YM62LX Controller Board (MYC-YM62LX System-On-Module)

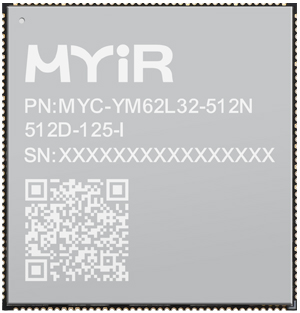

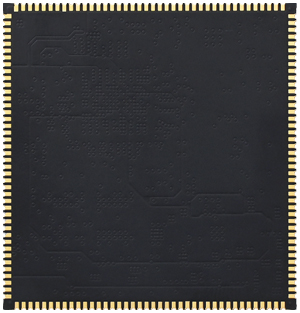

MYC-YM62LX System-On-Module

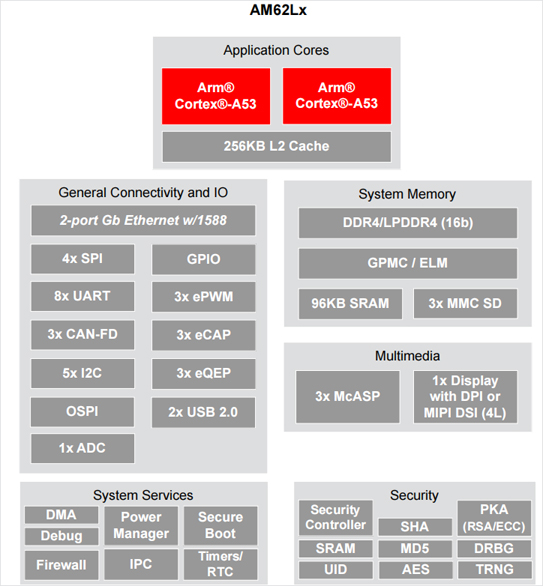

Processor
-
TI AM62Lx processor (AM62L32BOGHAANBR)
- Dual 64-bit Arm Cortex-A53 microprocessor subsystem up to 1.25GHz
- Dual-core Cortex-A53 with 256KB L2 Cache
- Each A53 core has 32KB L1 DCache and 32KB L1 ICache
Memory
-
512MB/1GB DDR4
-
512MB Nand Flash/8GB eMMC
-
4KB EEPROM
Peripherals and Signals Routed to Pins
-
164-pin Castellated-Hole Expansion Interfaces
- 2x 4-bit SD/SDIO
- 1x MIPI-DSI
- 2x RGMII/RMII
- 3x Multichannel Audio Serial Ports (McASPs)
- 2x USB 2.0, Support OTG
- 8x UART (UART0 is the Debug port)
- 3x CAN-FD
- 4x SPI
- 5x I2C
- 1x 4-ch ADC (10-bit Analog-to-Digital Converter, up to 1MSPS)
- 3x ePWM, enhanced PWM modules
- 3x eQEP, enhanced Quadrature Encoder Pulse modules
- 3x eCAP, enhanced Capture modules
- 1x GPMC (General-Purpose Memory Controller, up to 133MHz)
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and SOM pin-out description file.

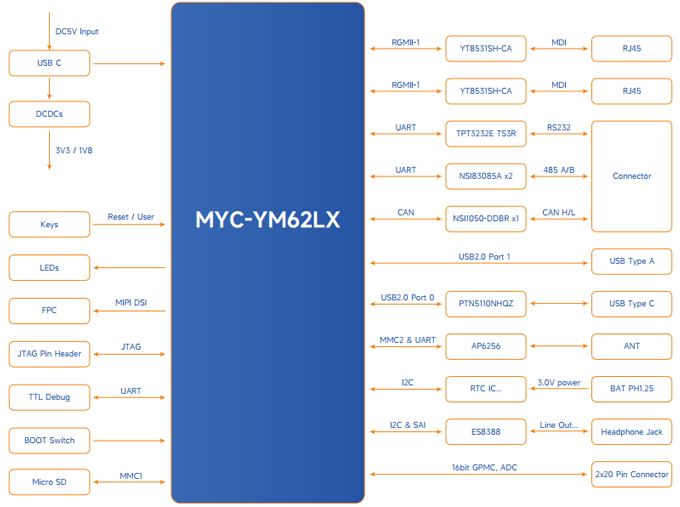

The MYD-YM62LX Base Board
-
1 x Power Switch (On/Off)
-
USB Power Supply Interface (5V/3A, Type-C)
-
1x TTL Debug serial port
-
1x USB 2.0 Host (Type-A)
-
1x USB 2.0 OTG (Type-C)
-
2x Gigabit Ethernet
-
1x RS232
-
2x RS485
-
1x CAN
-
1x WiFi/Bluetooth module
-
1x WIFI/BT ANT
-
1x Micro SD card slot
-
1x 4-channel ADC
-
1x GPMC
-
1x Audio input/output interface
-
1x MIPI DSI interface
OS Support
