MYC-JMX95X System-On-Module

MYC-JMX95X System-On-Module

- NXP i.MX95 based on 1.8GHz Six Cortex-A55 cores, plus M7 & M33 Real-time Cores for Low-latency & Secure Control
- 2.0 TOPS NPU for Edge AI/ML Inference
- Arm Mali-G310 GPU with 2D/3D Acceleration
- 4GB/8GB LPDDR5, 32GB/64GB eMMC, 32Kbit EEPROM
- Onboard Wi-Fi 6 & BT 5.4 Module
- SMARC 2.2 314-pin Expansion Connector
- Supports Working Temperature Ranging from -40 to 85 Celsius
- Linux BSP & Yocto Support


MYIR is a Gold Partner of NXP, welcome to use MYIR's NXP series products!
Please visit our new website at: https://en.myir.cn/


Measuring just 80mm x 50mm, the MYC-JMX95X is a high-performance SMARC System-On-Module (SOM) powered by the NXP i.MX95 (MIMX9596XVTXNAC) processor. It features 6x Cortex-A55 cores running up to 1.8 GHz for application processing, a Cortex-M7 for real-time control, and a Cortex-M33 for secure system management, along with a 2 TOPS eIQ Neutron NPU for AI inference acceleration.


The MYC-JMX95X SOM integrates LPDDR5 (4GB/8GB), eMMC (32GB/64GB), and 32Kbit EEPROM for flexible storage options, plus an onboard Wi-Fi 6 & BT 5.4 module. Security is reinforced by an independent TPM 2.0 chip, while the integrated PMIC delivers efficient power management.

The 314-pin SMARC connector, compliant with SMARC 2.1/2.2, delivers versatile expansion options: dual Gigabit Ethernet, flexible multi-display outputs (HDMI up to 4K@30Hz, dual LVDS, and MIPI-DSI), PCIe Gen3, USB 3.0/2.0, and CAN FD, as well as a full suite of UARTs, SPI, I2C, PWM, and ADC for peripheral integration.

MYIR provides a complete Linux BSP (Yocto, kernel 6.12.49) with example code and documentation to accelerate time-to-market. The module operates from -40°C to +85°C and is CE & RoHS certified, making it ideal for industrial control, in-vehicle infotainment, and smart-edge IoT platforms that demand secure, reliable, and AI-accelerated performance.

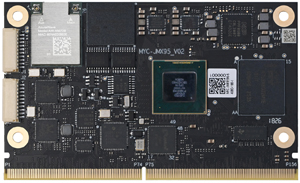

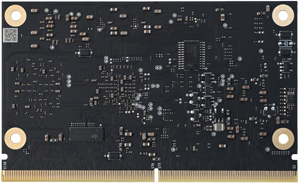

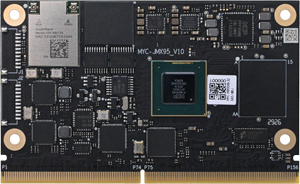

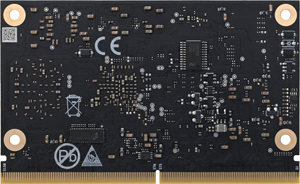

MYC-JMX95X System-On-Module (Top-view and Bottom-view)


The MYD-JMX95X development board combines the MYC-JMX95X SOM with a carrier board via a 314-pin SMARC connector. The carrier board delivers extensive evaluation interfaces, including dual Gigabit Ethernet, onboard Wi-Fi 6/BT 5.4, 4G/5G cellular support via mini PCIe socket with dual Micro SIM, HDMI/MIPI-DSI display, dual LVDS, MIPI-CSI camera, audio I/O, M.2-2280 PCIe for NVMe SSD, Micro SD, multiple USB (2x USB 3.0 Host, 2x USB 2.0 Host, and 1x USB 2.0 OTG), and dual CAN FD, RS485 & RS232 shared on a single Phoenix connector. This rich I/O portfolio makes it an ideal platform for rapid prototyping in edge-AI, industrial, and automotive applications.

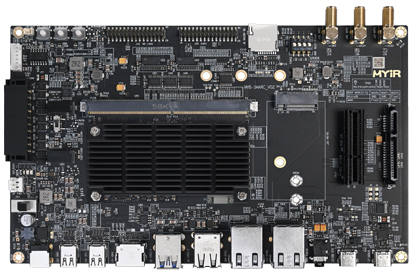

MYD-JMX95X Development Board (delivered with heatsink pre-installed)

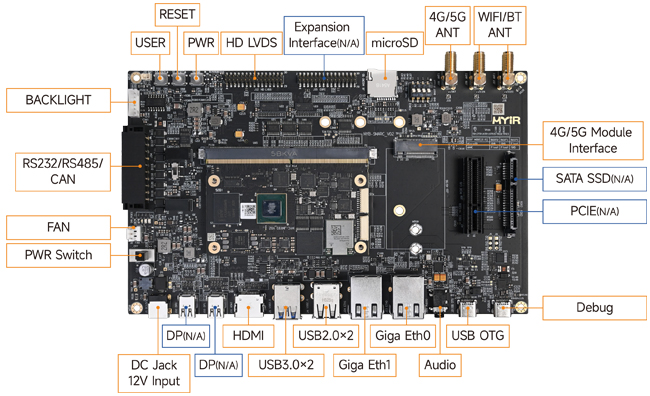

MYD-JMX95X Development Board (Top-view)

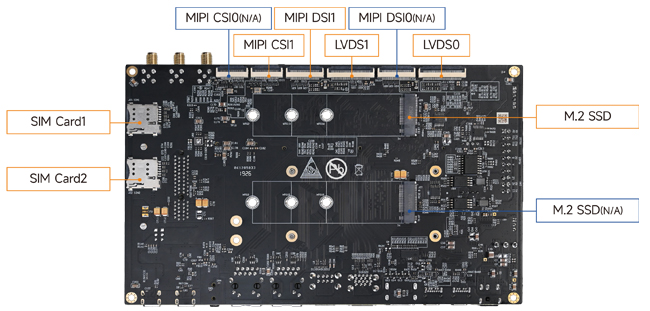

MYD-JMX95X Development Board (Bottom-view)

Features

Mechanical Parameters

  • Dimensions: 82mm x 50mm
  • PCB Layers: 12-layer design
  • Power supply: 5V/2A
  • Working temperature: -40~85 Celsius (industrial grade)

OS Support

  • Linux 6.12.49

Processor

  • NXP i.MX 95 processor (MIMX9596XVTXNAC)
    - Hexa-core 64-bit Arm Cortex-A55 microprocessor subsystem up to 1.8 GHz
    -     Cortex-M7 real-time core (up to 800 MHz)
    - Cortex-M33 system-management core (up to 333 MHz)
    - Integrated 2 TOPS eIQ Neutron NPU (INT8 @ 1 GHz)
    - Arm Mali-G310 3D GPU

Memory

  • 4GB/8GB LPDDR5 (single-chip)
  • 32GB/64GB eMMC
  • 32Kbit EEPROM

Peripherals and Signals Routed to Pins

  • Power Management IC (PCA9451AHNY)
  • Onboard WiFi 6 + Bluetooth 5.4 Module
  • Independent TPM 2.0 security chip
  • 314-pin SMARC Expansion Connector
    - 2x RGMII
    - 1x PCIe Gen3 (1-lane)
    - 1x USB 2.0 OTG
    - 2x USB 3.0 Host
    - 2x USB 2.0 (via HUB)
    -     2x CAN FD (up to 5 Mbps)
    - 4x UART
    - 2x SPI
    - 2x SAI (I2S/PCM/TDM compatible)
    - 1x SD/SDIO 3.0
    - 3x I2C, PWM, and control signals
    - 1x MIPI-DSI /1x HDMI (transferred via MIPI-DSI)
    - 2x LVDS
    -     1x MIPI-CSI

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet.


Other MYIR's NXP Products

http://www.myirtech.com/nxpseries.asp

MYD-J1028X Development Board (MYC-J1028X as core board, NXP LS1028A)

MYD-LMX9X Development Board (MYC-LMX9X as core board, NXP i.MX 93)

MYD-LMX91 Development Board (MYC-LMX91 as core board, NXP i.MX 91)

MYD-JX8MPQ Development Board (MYC-JX8MPQ as core board, NXP i.MX 8M Plus)

MYD-JX8MX Development Board (MYC-JX8MX as core board, NXP i.MX 8M)

MYD-C8MMX-V2 Development Board (MYC-C8MMX-V2 as core board, NXP i.MX 8M Mini)

MYD-JX8MMA7 Development Board (MYC-JX8MMA7 as core board, NXP i.MX 8M Mini + Artix-7 FPGA)

MYD-Y6ULX-V2 Development Board (MYC-Y6ULX-V2 as core board, NXP i.MX 8M Mini)

MYS-8MMX-V2 Single Board Computer (NXP i.MX 8M Mini)

MYS-6ULX Single Board Computer (NXP i.MX 6UL/6ULL)



Hardware Specification

The MYC-JMX95 System-on-Module (SOM) is powered by the NXP i.MX95 applications processor (MIMX9596XVTXNAC), which comes in a 15mm x 15mm, 0.5mm pitch FCBGA package. The i.MX95 integrates up to six Arm Cortex-A55 cores and features a built-in Cortex-M33 that can be configured as a safety island, making it the first i.MX family device to support hardware-enforced functional safety. Built on NXP's Energy Flex architecture, the processor delivers an optimal balance of performance and power efficiency for industrial, IoT, and automotive applications.


The i.MX95 also integrates advanced graphics and video cores, powerful vision and machine learning acceleration, and an EdgeLock® secure enclave for hardware-level security, supporting energy-efficient edge computing. It has a rich set of peripherals including USB 3.0/2.0, PCIe Gen3, CAN-FD, MIPI-CSI/DSI, SAI audio, and multiple UART/SPI/I2C interfaces, making the i.MX95 well-suited for a broad range of high-end industrial, automotive, medical, and AIoT applications requiring intelligent edge-AI features and optimized power architecture.

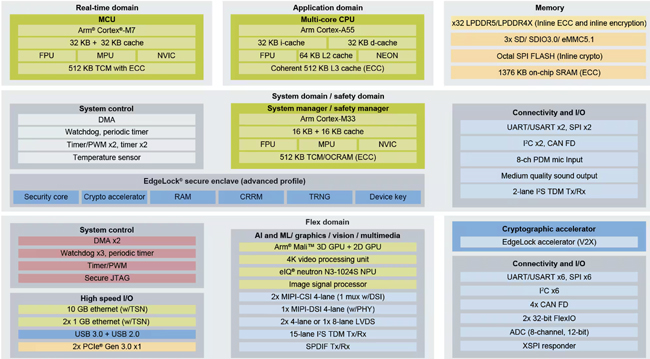

i.MX95 Processor Block Diagram

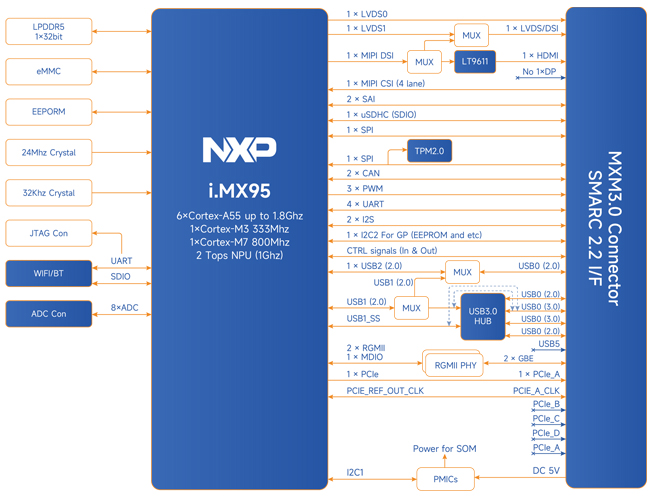

MYC-JMX95X Function Block Diagram





Software Features

The MYC-JMX95X comes with a complete software bundle and supports the Linux OS. To assist clients in rapidly developing projects, the source code for the kernel and various peripheral drivers is provided. The key features of the software are summarized as follows:


Item

Features

Description

Source Code

Bootloader

U-boot

Boot program uboot_2025.04

YES

Linux kernel

Linux kernel

Customized based on official kernel_6.12.49 version

YES

Device driver

USB HOST/OTG

USB HOST/OTG driver

YES

Ethernet

YT8531SH driver

YES

RS232

RS232 driver

YES

RS485

RS485 driver

YES

CAN

CAN driver

YES

RTC

RTC driver

YES

GPIO

GPIO driver

YES

Audio

Audio driver (ES8388)

YES

WIFI/BT

WiFi/Bluetooth driver (AW-XM729)

YES

TPM2.0

TPM driver

-

File system

myir-image-full

Linux Yocto image with pre-built GUI

YES








Relative Download and Links


You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.


1 MYC-JMX95X Overview 1.78 MB
2 MYD-JMX95X Development Board Overview
 4.46 MB
3 3D STEP file of MYC-JMX95X
 3 MB





Price and Ordering


Item

Part No.

Packing List

Ordering

MYC-JMX95X

MYC-JMX9596-32E4D-180-I

One MYC-JMX95X SOM

MYC-JMX9596-64E8D-180-I

MYD-JMX95X
Development Board


MYD-JMX9596-32E4D-180-I

- One MYD-JMX95X Board

(includes MYC-JMX95X SOM,
with heatsink pre-installed)
- One 12V/2A Power Adapter
- One USB Type-A to Type-C cable
- One Quick Start Guide
- One WIFI antenna
- One antenna cable


MYD-JMX9596-64E8D-180-I

LCD Module

MY-LVDS070C
 7-inch LVDS Display Module

with capacitive touch screen


LCD Module

MY-MIPI101C-V2
 10.1-inch MIPI Display Module

with capacitive touch screen


MY-CAM003M
Camera Module

MY-CAM003M
 MIPI Camera Module

Note:

1. One MYD-JMX95X Development Board includes one MYC-JMX95X SOM mounted on the base board. If you need more SOMs, you can order extra ones.

2. Bulk discounts are available. Please contact MYIR for inquiries.

3. We accept custom design based on the MYD-JMX95X, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
