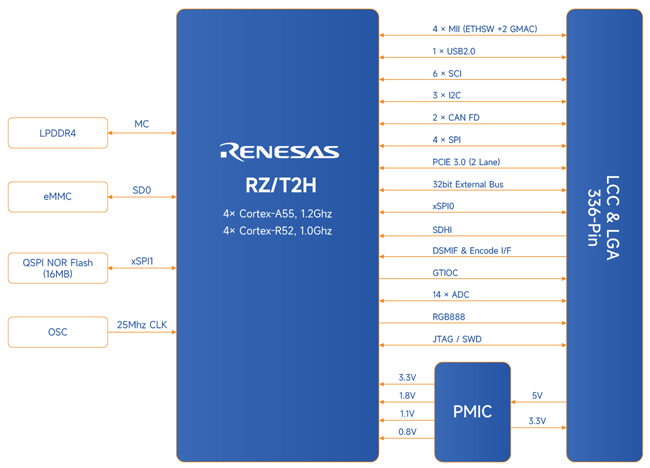

Measuring 50mm by 52mm, the MYC-YT2HX is a high-performance and compact System-On-Module (SoM) built around the advanced Renesas RZ/T2H microprocessor. It integrates a 1.2GHz quad-core Arm Cortex-A55 processor for high-level application tasks alongside a 1.0GHz dual-core Cortex-R52 processor for deterministic real-time control all within a single chip. In addition to the RZ/T2H, the MYC-YT2HX incorporates a Power Management IC (PMIC), 2GB LPDDR4 memory, 8GB eMMC storage, and a 16MB QSPI Nor Flash. It provides extensive peripheral and I/O connectivity via a 336-pin expansion interface (192-pin LCC + 144-pin LGA), including 4x 10/100Mps Ethernet, 2x CAN FD, 1x USB 2.0 HOST/OTG, along with multiple UART, I2C, SPI, PWM, ADC, and PCIe interfaces. The module also supports 30-channel Delta-Sigma interface (DSMIF) and a 24-bit RGB display for for demanding data acquisition and visualization tasks. It is ready-to-use Linux 5.10 support for accelerated software development.
With its rich feature set and compact footprint, the MYC-YT2HX provides a versatile and scalable solution for next-generation industrial applications, including industrial robots, collaborative robots, multi-axis servo drives, motion controllers, and PLCs.

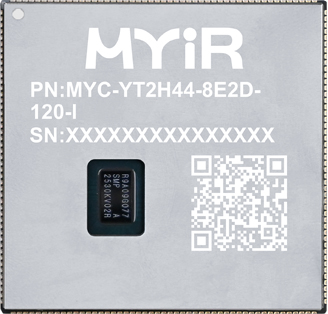

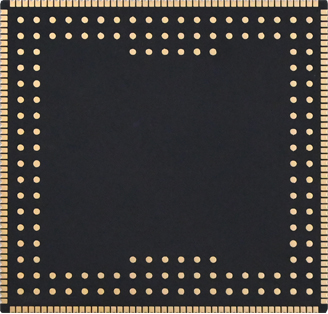

MYC-YT2HX System-On-Module Top-view and Bottom-view

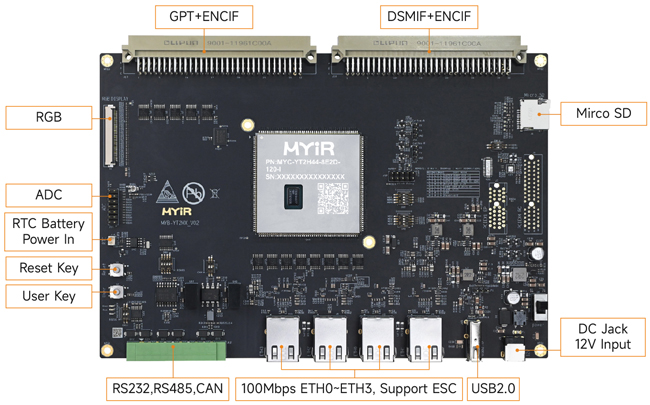

The MYD-YT2HX is a comprehensive development board designed around the MYC-YT2HX System-on-Module (SoM), featuring a dedicated carrier board that fully extends the capabilities of the Renesas RZ/T2H processor. The board provides rich connectivity and interface options, including four 10/100 Mbps Ethernet ports, one USB 2.0 Host, and industrial RS232, RS485, and CAN interfaces accessible via robust Phoenix connectors. It also features a Micro SD card slot for storage expansion, a 24-bit RGB display interface (with support for MYIR's optional 7-inch MY-TFT070RV2 display), 12-channel ADC inputs, an RTC with battery backup interface, and a JTAG debug interface. Two 3x 32-pin expansion connectors expose the GPT, DSMIF, and ENC interfaces, which can be flexibly reconfigured for multiple functions to enhance overall system versatility. With its rich feature set and thoughtful design, the MYD-YT2HX provides an ideal hardware foundation for evaluating the RZ/T2H processor and accelerating the development of industrial and real-time control applications.
Features
Mechanical Parameters
-
Dimensions: 50mm x 52mm
-
PCB Layers: 12-layer design
-
Power supply: 5V/2A
-
Working temperature: -40~85 Celsius (industrial grade)

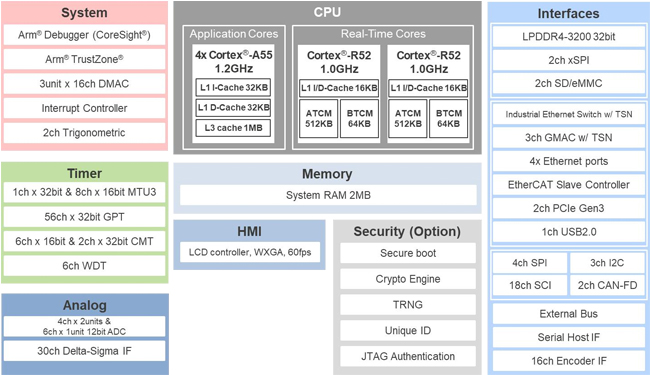

Processor
-
RENESAS RZ/T2H processor (R9A09G077M44GBG)
- 1.2 GHz Quad-core ARM Cortex-A55
- 1.0 GHz Dual-core ARM Cortex-R52
Memory
-
2G LPDDR4
-
8GB eMMC
-
16MB QSPI Nor Flash
Peripherals and Signals Routed to Pins
Peripherals and Signals Routed to Pins
-
336-pin (192-pin LCC +144-pin LGA) Expansion Interface
- 4x MII
- 1x USB 2.0 HOST/OTG
- 1x SDMMC
- 4x CS (8-bit/16-bit/32-bit External Bus)
- UART (6*SCI+12*SCIE)
- 2x CAN-FD
- 3x I2C
- 9-channel PWM MTU, 56-channel PWM GPT
- 4x SPI
- 14-channel ADC
- 30- channel Delta-Sigma IF- PCIe (1-lane x2 ports or 2-lane x1 port)
- 24-bit RGB supports WXGA (1280 * 800) @ 60 fps
- 1x JTAG
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.
OS Support
