MIC-P5760 IPC Box
|
- RK3576J Processor based on 1.6GHz Quad-core ARM Cortex-A72 and 1.4GHz Quad-core ARM Cortex-A53
- Equipped with a 6 TOPS NPU Accelerator and a 3D GPU
- 4GB LPDDR5, 32GB eMMC, 4KB EEPROM
- 1x Debug Port, 4x Gigabit Ethernet, 4x USB 3.0, 1x MicroSD Card Slot, 1x SIM Card Slot
- 8x RS485, 2x RS232, 4x CAN FD, 8x DI, 14x DO, 4x ADC
- Onboard WiFi/Bluetooth Module and Mini-PCIe Slot for 4G/5G Module
- Onboard M.2 (PCIe) M-Key 2280 Slot for SSD and Computing Power Card
- Supports HDMI, DVI and Mini DP Display, and Audio In/Out
- Supports Linux (Yocto), Debian
- Rugged and Fanless Enclosure Design
- Operating Temperature -40°C ~ 85°C
|
The MIC-P5760 is a powerful Industrial PC (IPC) Box built around the Rockchip RK3576J processor and housed in a rugged aluminum alloy enclosure. Designed for applications including EV charging piles, intelligent power distribution, commercial energy management, and industrial automation, it delivers reliable edge intelligence to energy infrastructure.
Powered by the Rockchip RK3576J industrial-grade SoC (featuring an octa-core CPU up to 1.6GHz, 6 TOPS NPU, and 3D GPU) paired with LPDDR5 memory, it delivers robust computing and AI performance. Storage and acceleration can be expanded via an M.2 (PCIe) 2280 slot, with eMMC and UFS options available. The device offers a rich array of peripheral interfaces: 4x Gigabit Ethernet, 4x USB 3.0, HDMI, DVI, and Mini DP display outputs, plus a 3.5mm audio input/output jack. Wireless connectivity includes WiFi/Bluetooth, as well as 4G/5G cellular support via an onboard mini PCIe slot and Micro SIM card slot. Moreover, it integrates 8 isolated RS485 ports, 2 isolated RS232 ports, 4 isolated CAN FD interfaces, rich digital I/O (8x DI + 14x DO), and 4x ADC inputs within a wide-temperature, wide-voltage platform, making it ready for harsh field deployment.
MYIR provides comprehensive software support for Linux (Yocto) and Debian operating systems, including U-Boot, Linux kernel 6.1, driver source code, and development tools. Detailed documentation such as product manuals, user guides, and development references is also available to facilitate secondary development and accelerate the deployment of custom applications.

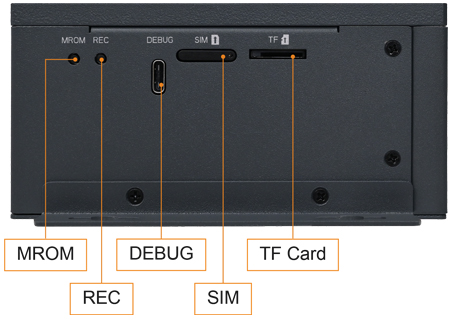

MIC-P5760 IPC Box Front View

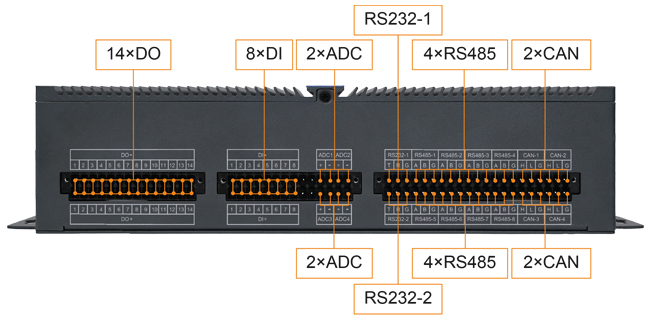

MIC-P5760 IPC Box Rear View

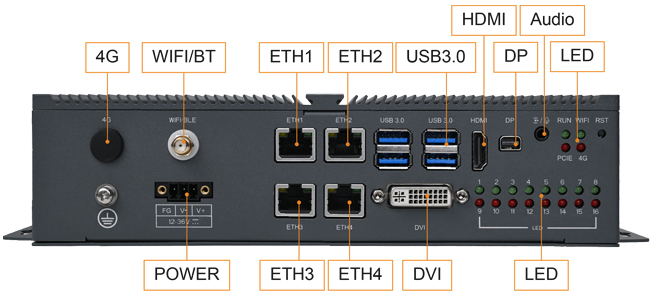

MIC-P5760 IPC Box Side View
Hardware Features
|
Features
|
Description
|
|
SoC
|
Rockchip RK3576J processor
- Octa-core Arm processor with 4x Cortex-A72 cores at 1.6 GHz, 4x Cortex-A53 cores at 1.4 GHz
- Arm Cortex-M0 MCU at 400MHz for user application
- Arm Mali-G52 MC3 GPU
- 6 TOPS NPU supports INT4/8/16/FP16/BF16/TF32
- Supports up to 8K@30fps or 4K@120fps video decoding (H.265/HEVC, VP9, AVS2, and AV1) and video encoder up to 4K@60fps video encoding (H.265 and H.264)
|
|
Memory
|
4GB LPDDR5 (8GB available as a customization option)
|
|
Storage
|
32GB eMMC (64GB or 128GB UFS available as customization options)
4KB EEPROM
1x Micro SD card slot
1x M.2 (PCIe) M-Key 2280 slot for SSD storage and AI computing card expansion
|
|
Communication
|
1x Type-C USB-UART Debug Interface
4x USB 3.0 Host Type-A Ports
4x 10/100/1000Mbps Gigabit Ethernet Interfaces
Onboard WiFi/BT Module (complies with IEEE 802.11a/b/g/n/ac standard, supports WiFi 6+BT V5.4)
1x WiFi/BT antenna interface
1x Mini-PCIe Slot for 4G/5G Module, paired with 1x Micro SIM card slot
4x CAN FD (isolated)
8x RS485 (isolated), 2x RS232 (isolated)
8x DI (isolated), 14x DO (isolated)
4x ADC inputs
|
|
Multimedia
Interfaces
|
1x HDMI (supports up to 4K@120Hz resolution)
1x Mini DisplayPort (DP) (supports up to 4K@60Hz resolution)
1x DVI
1x 3.5mm Audio Jack (headphone output and microphone input)
|
|
Others
|
1x External Watchdog
1x Supercapacitor backup, supports 5-second power-off delay
1x External RTC (requires external 3.3V battery)
1x Onboard buzzer
20x LEDs (one for power/system status, one for Wi‑Fi, one for PCIe SSD, and one for 4G/5G connectivity, plus sixteen user-configurable LEDs)
3x Buttons (Reset, RECOVERY, MASKROM)
|
|
Power supply
|
DC 12~36V/5A (via Phoenix connector)
|
|
Dimensions
|
230mm x 119mm x 59mm (without mounting bracket)
260mm x 119mm x 59mm (with mounting bracket)
|
|
Working Temp.
|
-40°C ~+85°C
|
Net Weight
|
1,190g
|
|
OS
|
Linux (Yocto), Debian
|
|
Installation
|
Desktop/Wall mounted (can be customized for Rail mounted)
|
Software Features
The MIC-P5760 offers supports for Linux and Debian operating systems and is equipped with comprehensive software packages. To assist clients in speeding up their projects, the kernel and numerous peripheral drivers are provided in source code format. Below is a brief overview of the key software feature:
|
Item
|
Features
|
Description
|
Source Code
|
|
Bootloader
|
Pre-loader
|
First Bootloader Program
|
NO
|
|
U-Boot
|
U-Boot 2017.09
|
YES
|
|
Kernel
|
Linux kernel
|
Customized based on Rockchip's official Linux kernel 6.1
|
YES
|
|
Drivers
|
EEPROM
|
EEPROM (BL24C32F) driver
|
YES
|
|
USB
|
USB driver
|
YES
|
|
Ethernet
|
Ethernet (YT8531SH) driver
|
YES
|
|
HDMI
|
HDMI driver
|
YES
|
|
DP
|
DP driver
|
YES
|
|
DVI
|
MI driver
|
YES
|
|
Audio
|
ES8390 audio driver
|
YES
|
|
RTC
|
RX8025 driver
|
YES
|
|
GPIO
|
GPIO driver
|
YES
|
|
RS232
|
RS232 driver
|
YES
|
|
RS485
|
RS485 driver
|
YES
|
|
CAN
|
CAN driver
|
YES
|
|
WiFi
|
WiFi (BL-M8800DS7-80I) driver
|
YES
|
|
BT
|
Bluetooth (BL-M8800DS7-80I) driver
|
YES
|
ADC
|
ADC driver
|
YES
|
|
File system
|
myir-image-mic-p5760-debian
|
Image built based on Debian system
|
YES
|
|
myir-image-mic-p5760-yocto
|
Linux image built with Yocto
|
YES
|
|
myir-image-mic-p5760-yocto-preempt-rt
|
Rt Linux image built with Yocto
|
YES
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
MIC-P5760 IPC Box Overview
|
1.34 MB
|
|
Price and Ordering
|
Item
|
Packing List
|
Ordering
|
|
MIC-P5760 IPC Box
(Part No.: MIC-P5760-IB411000)
|
- One MIC-P5760 IPC Box
(4GB LPDDR5 + 32GB eMMC)
- One Quick Start Guide
- One WiFi/Bluetooth antenna
- One 3.5 mm pitch 28-pin Phoenix connector
- One 3.5 mm pitch 42-pin Phoenix connector
- One 3.81 mm pitch 3-pin Phoenix connector
|
|
|
